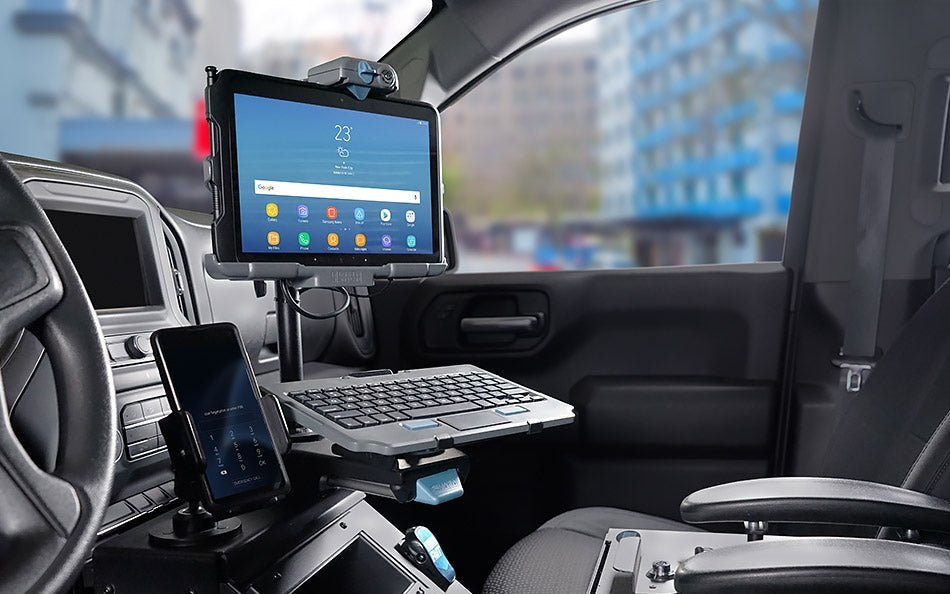

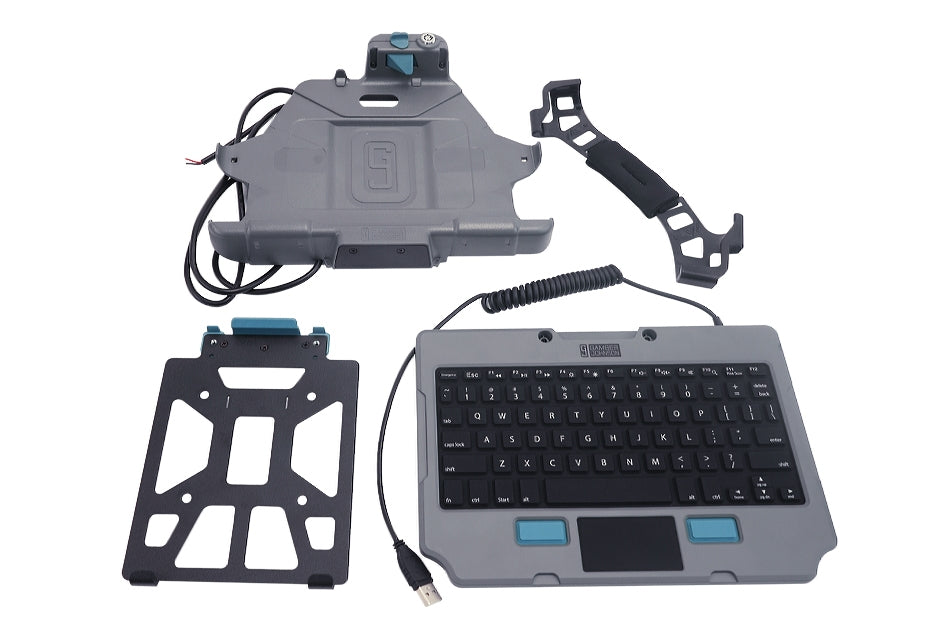

This kit combines the Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station with the Hand strap and the Rugged Lite Keyboard with Quick Release Keyboard Cradle. . This kit is the ultimate combination for the mobile worker looking for an ergonomic vehicle setup but also uses the tablet outside the vehicle to perform work in the field.
Docking Station: 1.3 lbs / 0.58 kg
Docking Station: 8.5 in / 21.5 cm
Docking Station: 10.5 in / 26.6 cm
Docking Station: 2.5 in / 6.35 cm
Keyboard: 1 lb / 0.45kg
Keyboard: 10.31 in / 26.18 cm
Keyboard: 0.56 in / 1.42 cm
Keyboard: 7.12 in / 18.08 cm
Docking Station: None
Samsung Galaxy Tab Active Pro/Active4 Pro
Docking Station: (2) USB 2.0 - each with 1.5A power
Keyboard: USB 2.0 (500mA)
Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10-Inch rugged tablet with rugged case

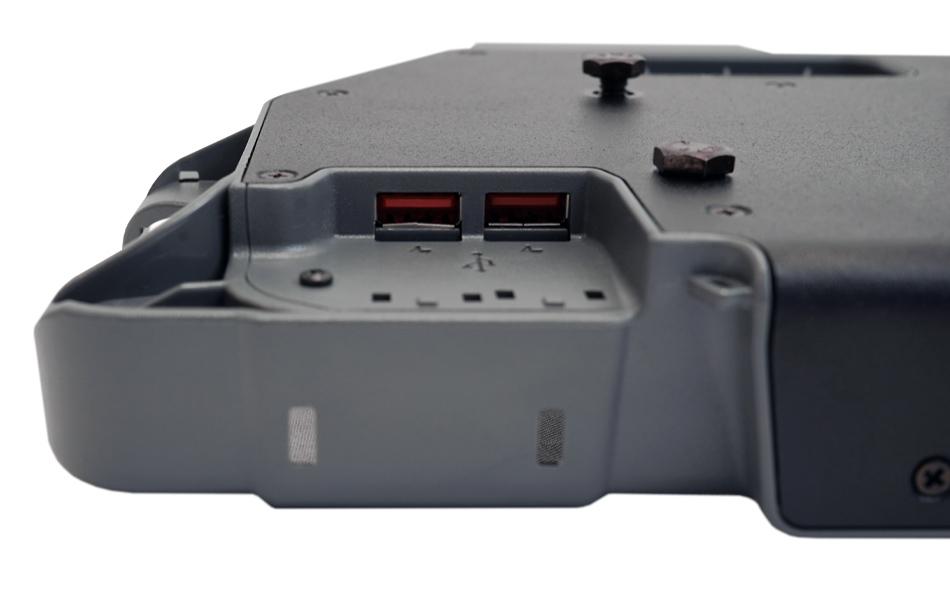

Dual powered USB ports; 1.5A for each port for connecting peripheral devices
10-40V power input range to support a wide range of mobile applications
Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
Simple, one-handed docking and release operation:
Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
Push latch button up with your thumb then remove the tablet from the docking station.
POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
Barrel Key lock for theft deterrence
VESA 75mm mounting pattern; compatible with Zirkona mounting products.
Approximately 66” (167.6 cm) power cable with bare wire end
Can be mounted on a flat vertical surface.
Composite design for reduced overall weight.
Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10- Inch rugged tablet with rugged case
Compatible with Gamber-Johnson's Tab Active Pro/Active4 Pro docking station
Easily dock the tablet in the docking station with the hand strap attached
Hand strap easily slips over the diagonal corners of the tablet
Cushioned pad for comfort
Rugged Lite Keyboard
Integrated center Touchpad with right and left mouse button
76-key keyboard with 12 function keys for custom operation
Low-profile ergonomic design for ease of use in a mobile environment
Emergency Key - a configurable key that can be used to send for emergency help or assistance
Silicone rubber keys with white lettering and a rugged ABS poly-carbonate case
Input cable: USB Type A male connector (1.5 m/59.0 inch cable)
Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms
USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA)
Rubber feet to prevent slippage
Keyboard is compatible with Gamber-Johnson Quick Release Keyboard Cradle (7160-1470-00)
Available in US English (7160-1449-00), UK (7160-1449-01), German (7160-1449-02), French (7160-1449-03), and Spanish (7160-1449-04). Contact Gamber-Johnson for other language options.
Quick Release Keyboard Cradle
Black powder coat finish
VESA 75 mounting pattern, attach to most Gamber-Johnson motion attachments
Easily insert or release the keyboard:
Insert bottom of keyboard into cradle, match indents in keyboard with hooks on cradle, then push top of keyboard into cradle and engage latch
To remove, push latch to disengage and pull keyboard out of cradle
Compatible with Gamber-Johnson Rugged Lite Keyboard (7160-1449-00)
