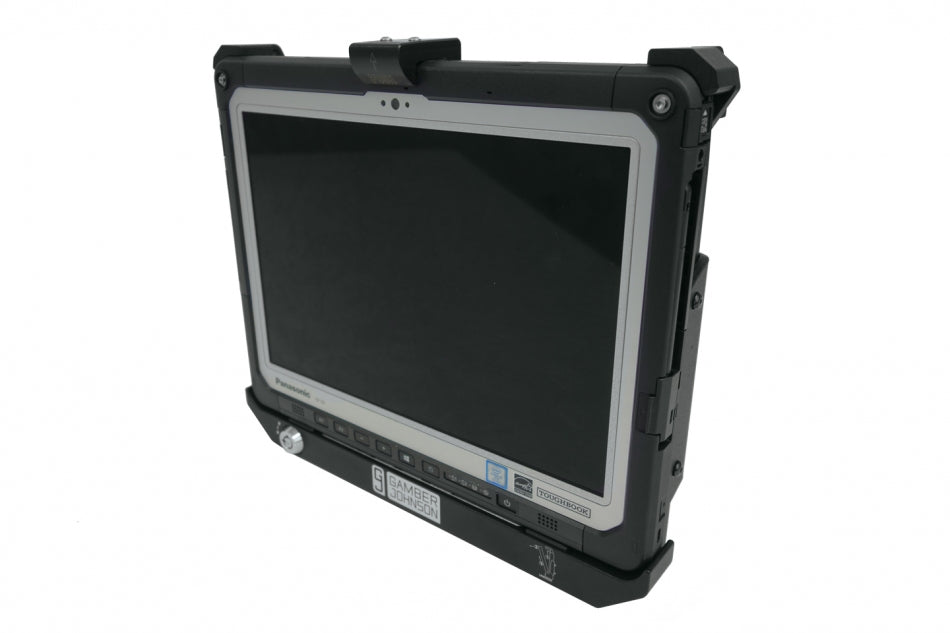

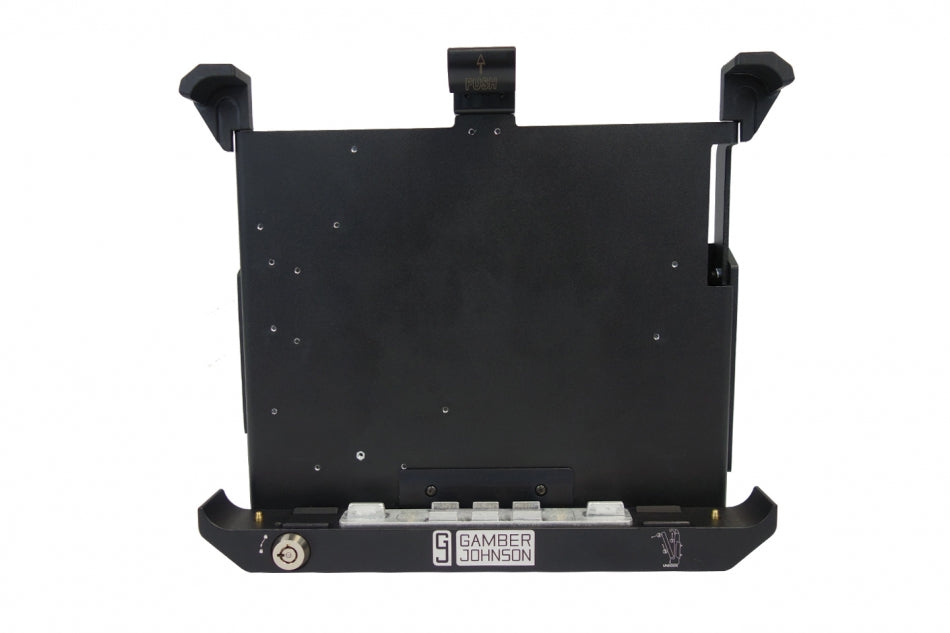

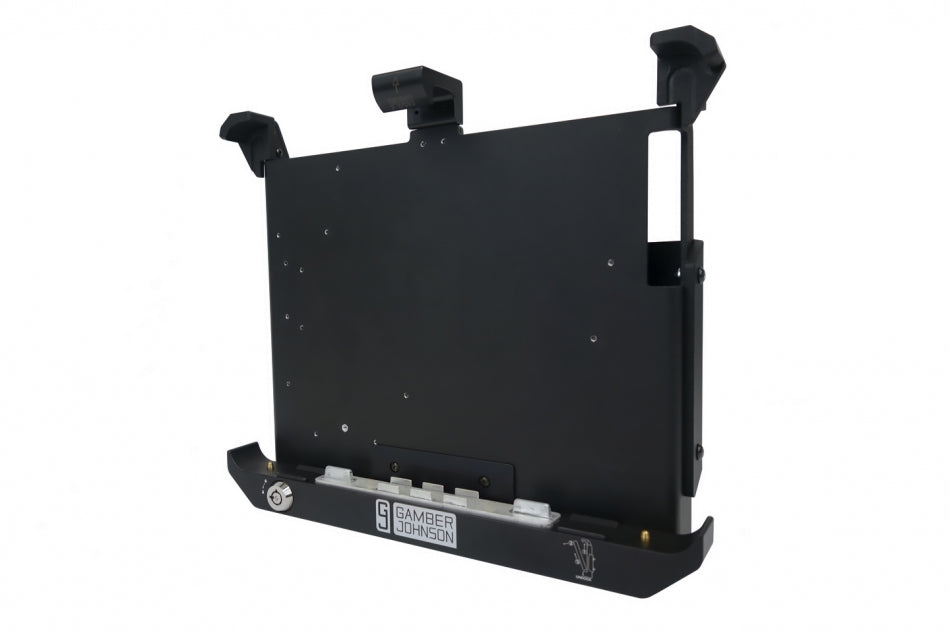

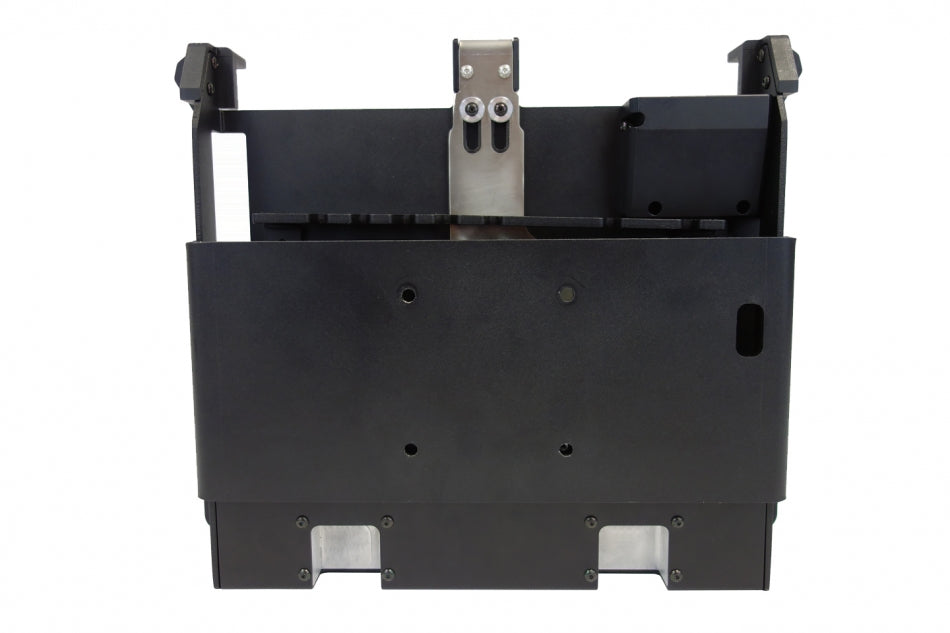

TrimLine™ Panasonic Toughbook 33 Tablet Cradle with LIND Power Adapter

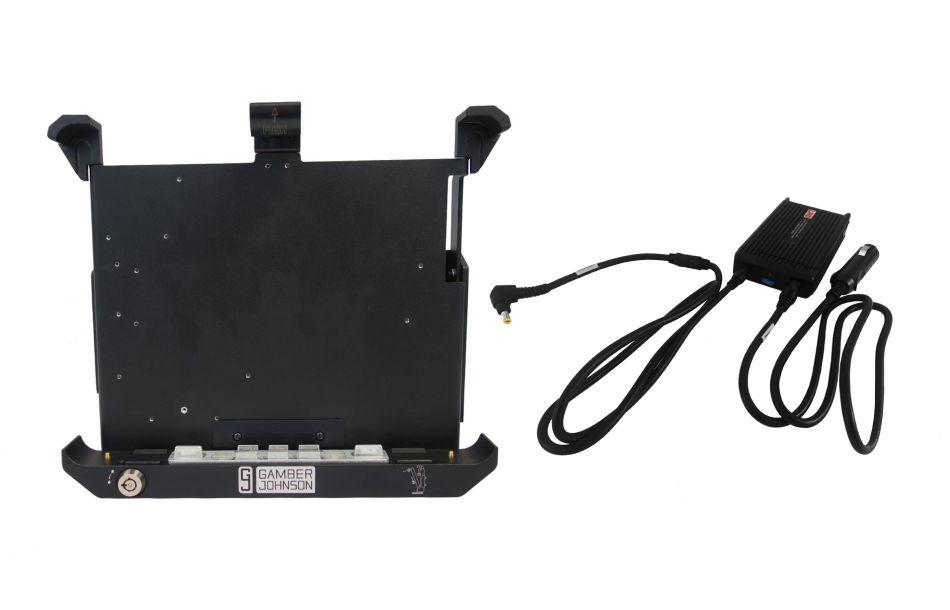

Conserve valuable cabin space with our thinnest version of the CF-33 tablet cradle. Built to withstand the most demanding conditions, this cradle is designed using CNC machined aluminum. This kit includes a LIND auto power adapter.
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- None
SPECIFICATION
- Height: 10.8" / 27.4 cm
- Width: 12.3" / 31.4 cm
- Depth: 3" / 7.6 cm
FEATURES
- Space saving and ergonomic design improves safety and comfort
- CNC machined aluminum construction for rugged reliability
- Easy, one handed operation
- Compatible with Panasonic CF-33 Toughpad tablets without external accessories
- VESA 75mm hole pattern
- Flex lock (keyed alike) feature for theft deterrence
- Includes power adapter with indicator light
WARRANTY
- Limited Lifetime Warranty on structural components
- 3-Year Limited Warranty on electronics
TESTING & CERTIFICATES
- The CF-33 tablet docking station is designed and tested to rugged environmental standards. It’s Toughbook Certified, and has passed MIL-STD-810G shock/vibration, crash, cycle, RoHS, FCC, and CE testing.
PRODUCT SELECTION
| PART NO. | DESCRIPTION | USB 2.0 | USB 3.0 | ETHERNET | SERIAL | VGA | HDMI | POWER ADAPTER INCLUDED | ANTENNA RF |
|---|---|---|---|---|---|---|---|---|---|
| 7300-0196-00 | CF33 Tablet Dock, LITE Port Replication | 4 | 2 | 2 | 1 | 0 | 0 | NO | NO |
| 7300-0196-02 | CF33 Tablet Dock, LITE Port Replication | 4 | 2 | 2 | 1 | 0 | 0 | NO | DUAL |
| 7300-0196-10 | CF33 Tablet Dock, LITE Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 0 | 0 | YES | NO |
| 7300-0196-12 | CF33 Tablet Dock, LITE Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 0 | 0 | YES | DUAL |
| 7300-0196-20 | CF33 Tablet Dock, FULL Port Replication | 4 | 2 | 2 | 1 | 1 | 1 | NO | NO |
| 7300-0196-30 | CF33 Tablet Dock, FULL Port Replication | 4 | 2 | 2 | 1 | 1 | 1 | NO | DUAL |
| 7300-0196-22 | CF33 Tablet Dock, FULL Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 1 | 1 | YES | NO |
| 7300-0196-32 | CF33 Tablet Dock, FULL Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 1 | 1 | YES | DUAL |
| 7300-0195-00 | CF33 Tablet CRADLE (No electronics) | 0 | 0 | 0 | 0 | 0 | 0 | NO | NO |
| 7300-0195-10 | CF33 Tablet CRADLE (No electronics) w/ PWR Adapter | 0 | 0 | 0 | 0 | 0 | 0 | YES | NO |
