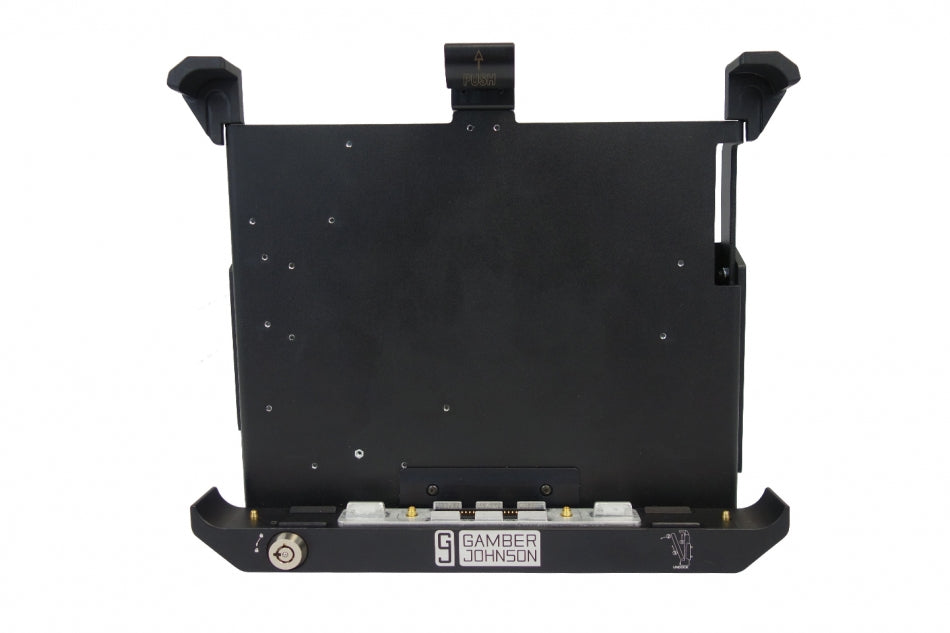

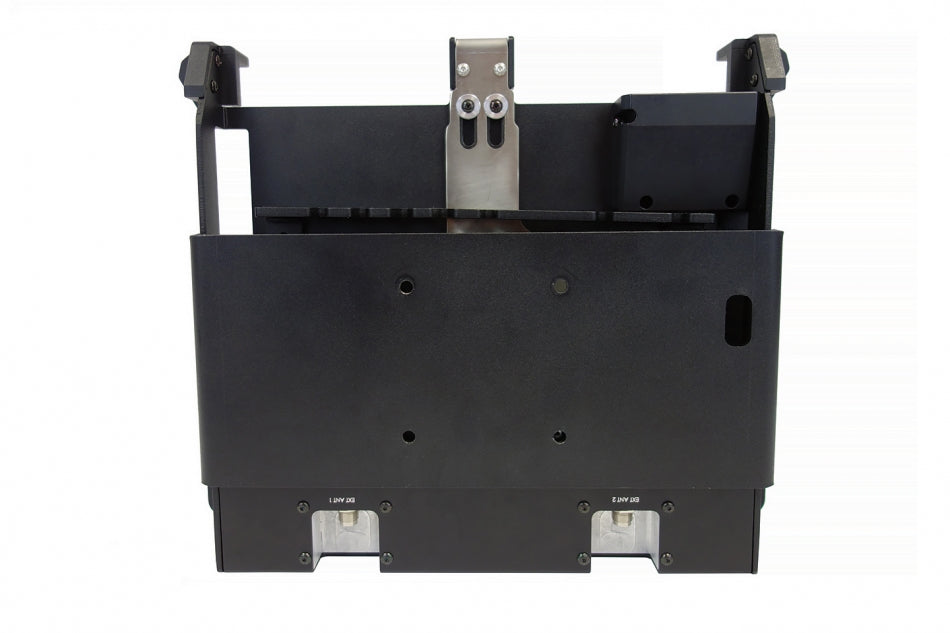

TrimLine™ Panasonic Toughbook 33 Tablet Docking Station, Lite Port, Dual RF
Conserve valuable cabin space with our thinnest version of the CF-33 tablet docking station. Can be purchased as a kit with a power adapter.
ANTENNA PASS-THROUGH
- Dual (TNC)
PORT REPLICATOR
- Ethernet (2)
- Serial (1)
- USB 2.0 (4)
- USB 3.0 (2)
- Power Input: 16Vdc
DIMENSIONS
- Width: 12.3" / 31.4 cm
- Height: 10.8" / 27.4 cm
- Depth: 3" / 7.6 cm
FEATURES
- Space saving and ergonomic design improves safety and comfort.
- CNC machined aluminum construction for rugged reliability.
- Easy, one handed operation.
- Top mounted USB ports for compatibility with “Clamshell” mounts.
- Compatible with Panasonic CF-33 Toughpad tablets without external accessories VESA 75mm hole pattern.
- Internal Panasonic circuit board for device compatibility.
- Floating, protected docking connector for reliable docking connection.
- Flex lock (keyed alike) feature for theft deterrence.
- Optional cradle version (no ports) available.
- Available with power indicator light when purchased as kit with PSU.
TESTING & CERTIFICATES
- The CF-33 tablet docking station is designed and tested to rugged environmental standards.
- It’s Toughbook Certified, and has passed MIL-STD-810G shock/vibration, crash, cycle, RoHS, FCC, and CE testing.
WARRANTY
- Limited Lifetime Warranty on structural components
- 3-Year Limited Warranty on electronics
