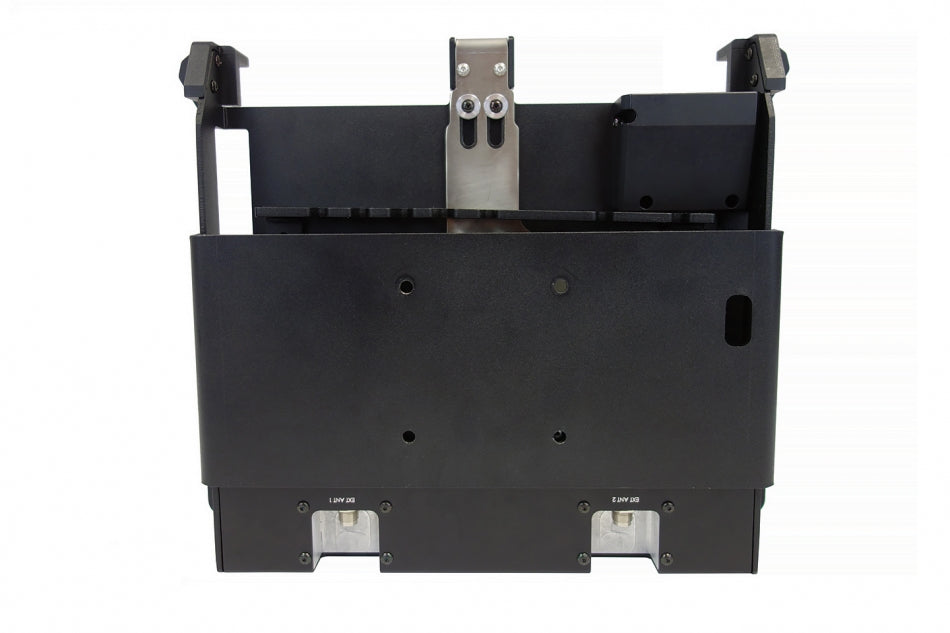

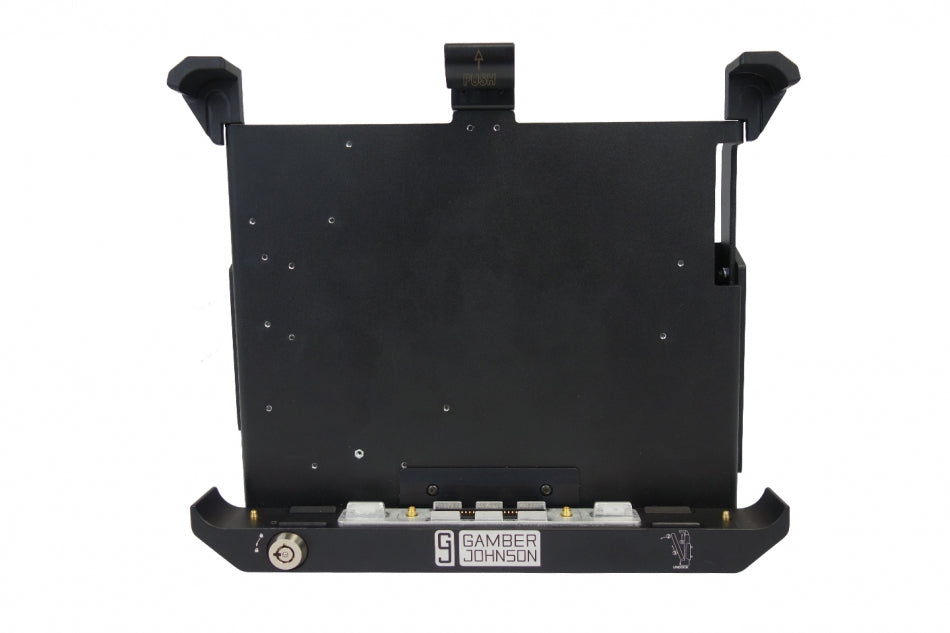

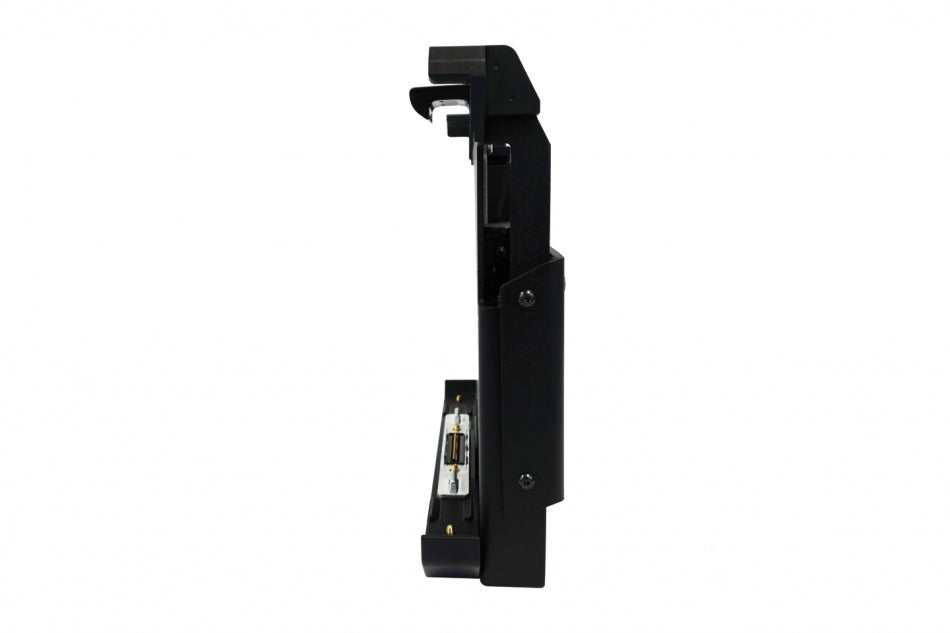

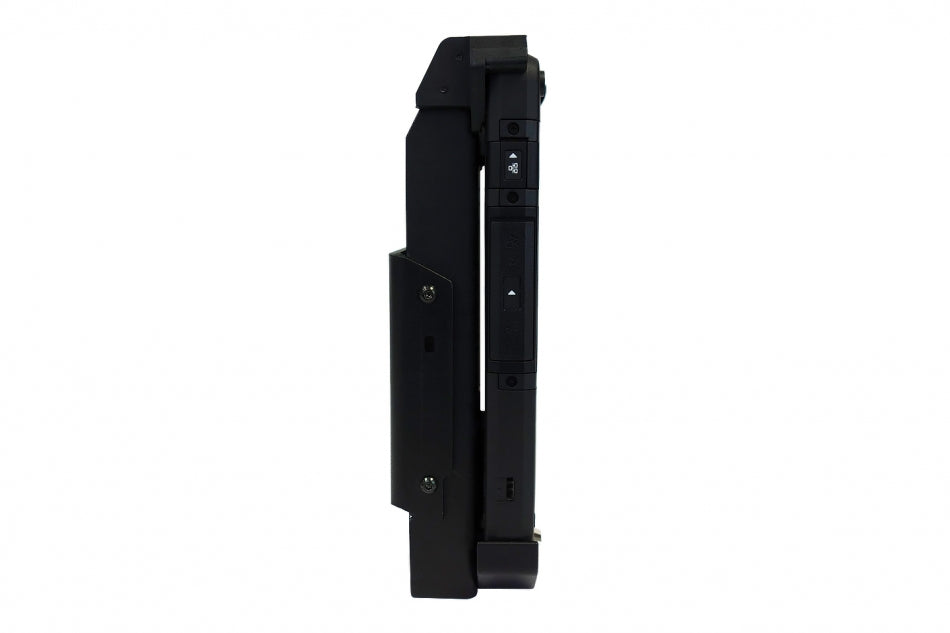

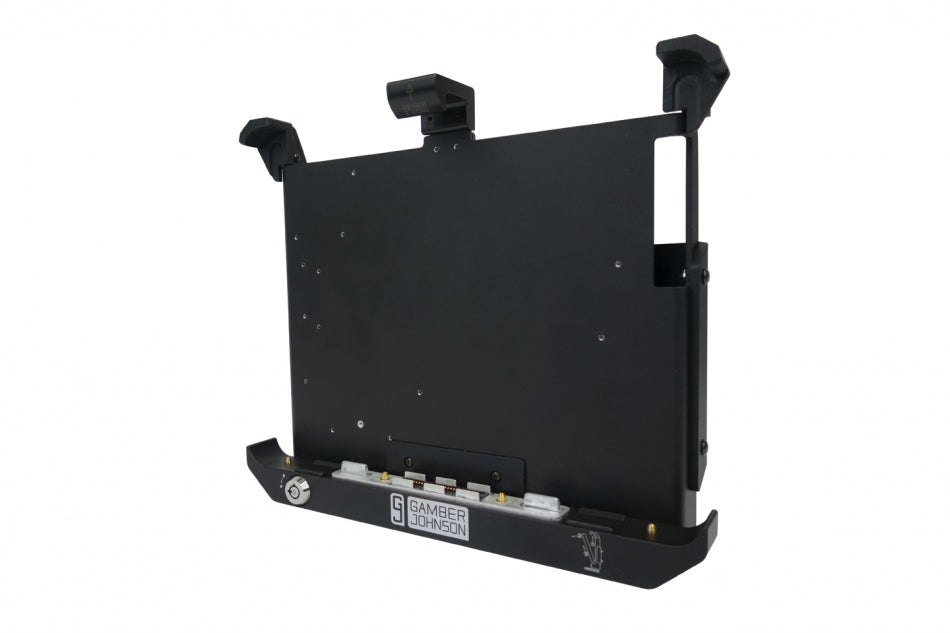

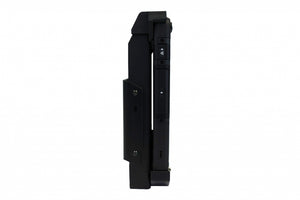

TrimLine™ Panasonic Toughbook 33 Tablet Docking Station with LIND Power Adapter, Lite Port, Dual RF

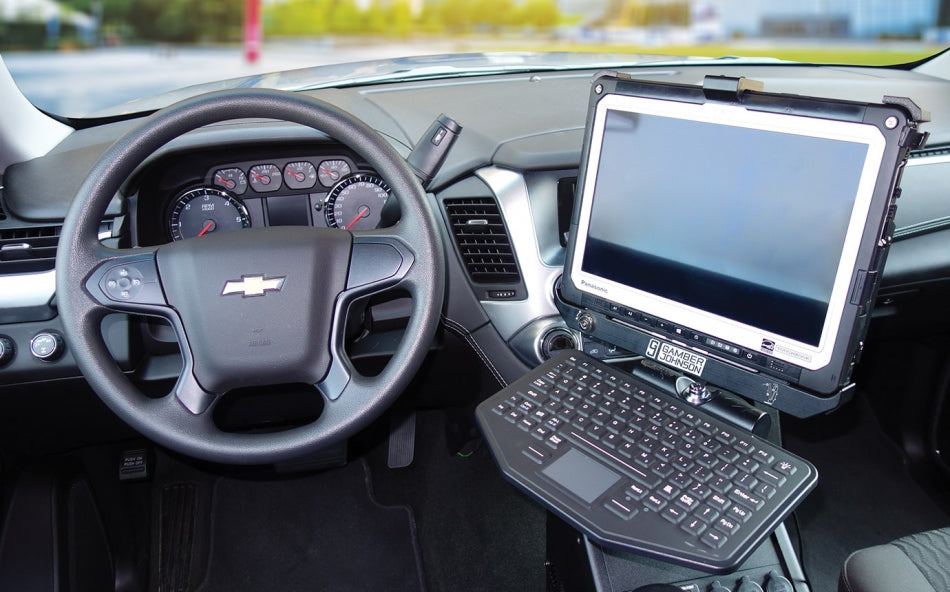

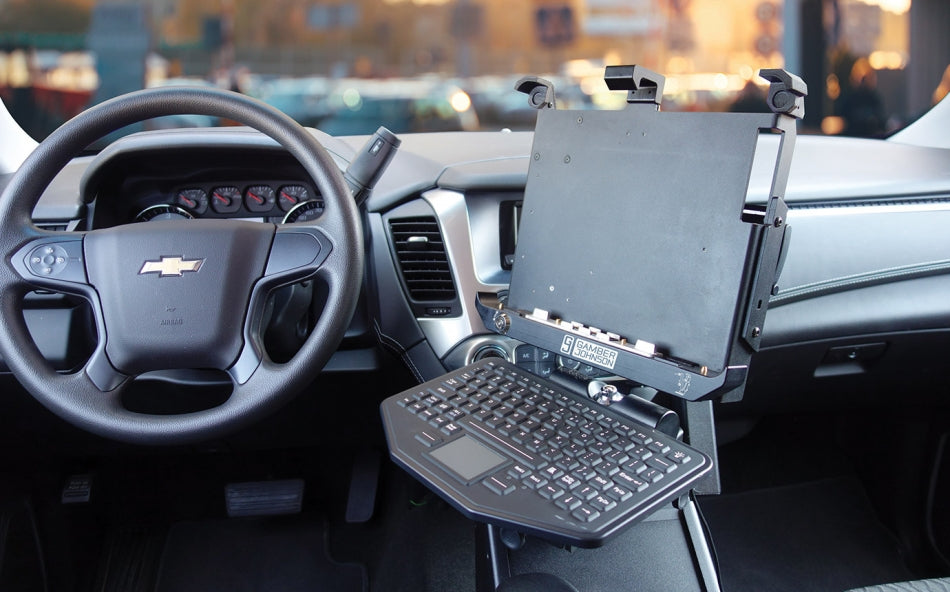

Conserve valuable cabin space with our thinnest version of the CF-33 tablet docking station.
ANTENNA PASS-THROUGH
- DUAL (TNC)
PORT REPLICATOR
- Ethernet (2)
- Serial (1)
- USB 2.0 (4)
- USB 3.0 (2)
- Power Input: 16Vdc
DIMENSIONS
- Height: 10.8" / 27.4 cm
- Width: 12.3" / 31.4 cm
- Depth: 3" / 7.6 cm
FEATURES
- Space saving and ergonomic design improves safety and comfort
- CNC machined aluminum construction for rugged reliability
- Easy, one handed operation
- Top mounted USB ports for compatibility with "Clamshell" mounts

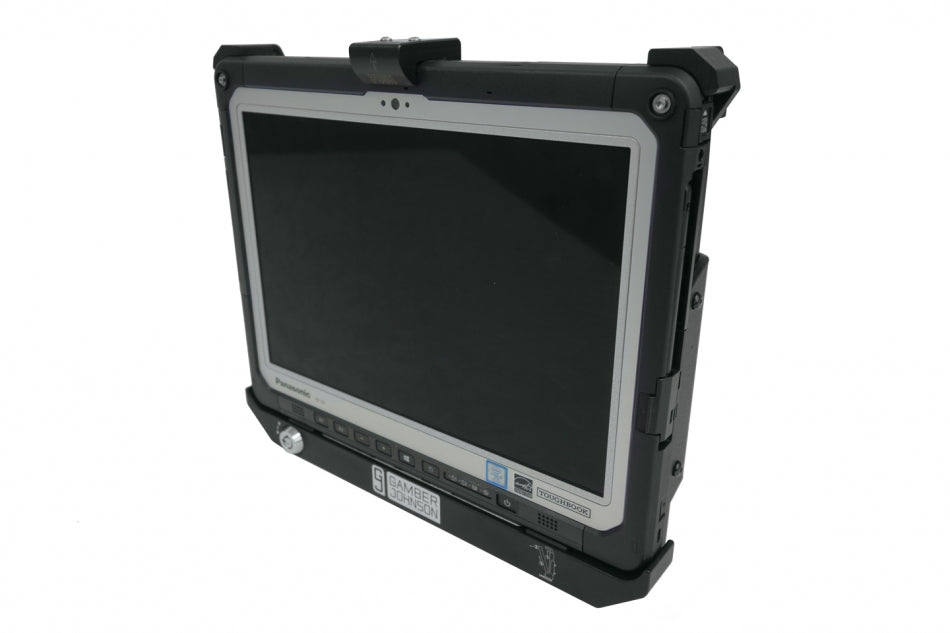

- Compatible with Panasonic CF-33 Toughpad tablets without external accessories
- VESA 75mm hole pattern
- Internal Panasonic circuit board for device compatibility
- Floating, protected docking connector for reliable docking connection
- Flex lock (keyed alike) feature for theft deterrence
- Optional cradle version (no ports) available
- Available with power indicator light when purchased as kit with PSU
WARRANTY
- Limited Lifetime Warranty on structural components
- 3-Year Limited Warranty on electronics
TESTING & CERTIFICATES
- The Toughbook 33 tablet docking station is designed and tested to rugged environmental standards. It’s Toughbook Certified, and has passed MIL-STD-810G shock/vibration, crash, cycle, RoHS, FCC, and CE testing.
PRODUCT SELECTION
| PART NO. | DESCRIPTION | USB 2.0 | USB 3.0 | ETHERNET | SERIAL | VGA | HDMI | POWER ADAPTER INCLUDED | ANTENNA RF |
|---|---|---|---|---|---|---|---|---|---|
| 7300-0196-00 | CF33 Tablet Dock, LITE Port Replication | 4 | 2 | 2 | 1 | 0 | 0 | NO | NO |
| 7300-0196-02 | CF33 Tablet Dock, LITE Port Replication | 4 | 2 | 2 | 1 | 0 | 0 | NO | DUAL |
| 7300-0196-10 | CF33 Tablet Dock, LITE Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 0 | 0 | YES | NO |

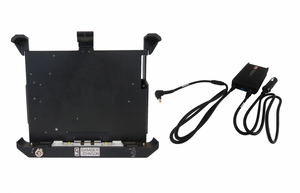

| 7300-0196-12 | CF33 Tablet Dock, LITE Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 0 | 0 | YES | DUAL |
| 7300-0196-20 | CF33 Tablet Dock, FULL Port Replication | 4 | 2 | 2 | 1 | 1 | 1 | NO | NO |
| 7300-0196-30 | CF33 Tablet Dock, FULL Port Replication | 4 | 2 | 2 | 1 | 1 | 1 | NO | DUAL |
| 7300-0196-22 | CF33 Tablet Dock, FULL Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 1 | 1 | YES | NO |
| 7300-0196-32 | CF33 Tablet Dock, FULL Port Repl. W/PWR Adapter | 4 | 2 | 2 | 1 | 1 | 1 | YES | DUAL |
| 7300-0195-00 | CF33 Tablet CRADLE (No electronics) | 0 | 0 | 0 | 0 | 0 | 0 | NO | NO |
| 7300-0195-10 | CF33 Tablet CRADLE (No electronics) w/ PWR Adapter | 0 | 0 | 0 | 0 | 0 | 0 | YES | NO |
