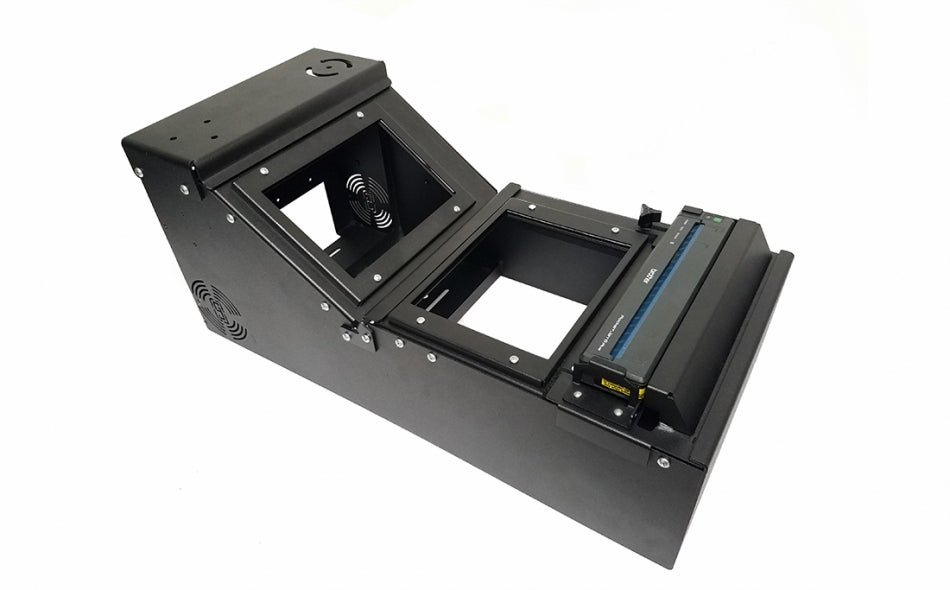

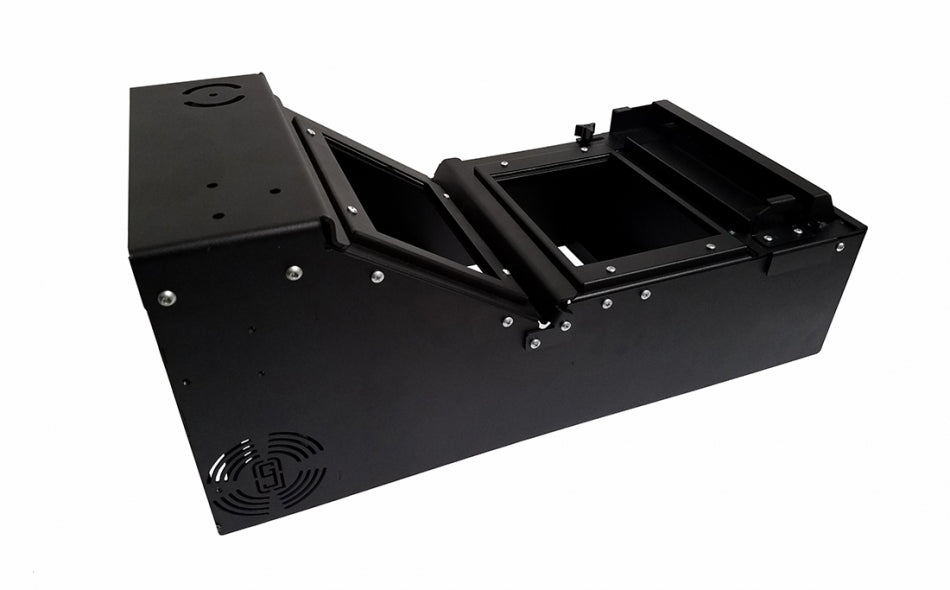

Wide Body Console with Brother Pocket Jet Printer Mount

• Low profile, universal console with sloped front mounting area
• Designed to work with Top Plate / Tunnel Plate and Leg Kits
• Two 12 Volt plug knockouts, located on the passenger side wall of console box and one knockout for switches , dual USB power ports, battery voltage display, data / mic jack or USB / AUX input module extension
• Threaded inserts for mounting mic clip (item no. 7120-0723) or  Magnetic Mic™  (item no. 17040) on both sides
• Side vented openings for air flow or mounting a speaker inside the console box
• Threaded inserts on both sides of console box for side armrest mounting (item no. 7110-1012 - passenger side armrest) and (item no. 7110-1013 - driver side armrest)
• Threaded inserts on passenger sides of console box for the passenger side document compartment (item no. 7160-0464) and driver side armrest (item no. 7110-1013)
• Threaded inserts on back of console box for mounting external cup holder (item no. 7160-0847) and MCS armrest (item no. 7160-0429) or printer armrest (item no. 7160-0430)
• Front plate of console (underneath dash area) has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes
• Box shipped assembled, except accessories
• Computer can be center mounted in two locations:
  • Off‐set towards the passenger on the “smiley face pattern”
  • On the 3‐bolt pattern closer to the driver for easy articulation access
• Fully welded construction for long term product life span
• 3 faceplates and 3 filler panels are included
• Limited Lifetime Warranty

SPECS

• Width: 11.75" / 29.8 cm
• Height: 11.88" / 30.2 cm
• Length: 24.75" / 62.9 cm

• Has a consistent mounting space height of 6.0"
• Designed to house devices and accessories measuring less than 6 inches in depth
• Has additional side mounting area of 2" that will accommodate the 2-inch Faceplate for Switches or Power Ports (item no. 7160-0924) or a smaller device

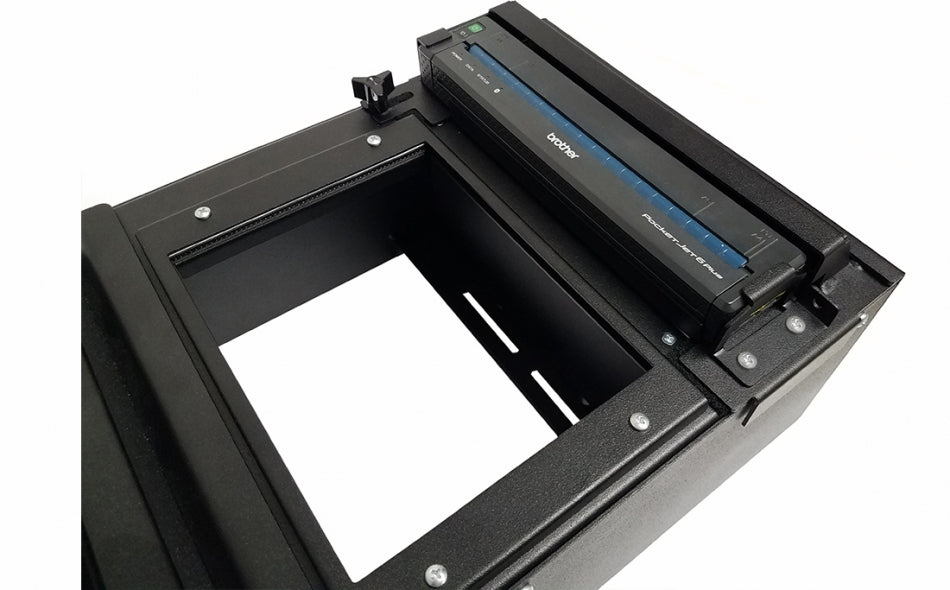

• Mounting for the Brother Pocket Jet series printer and roll of paper in the back of the console box

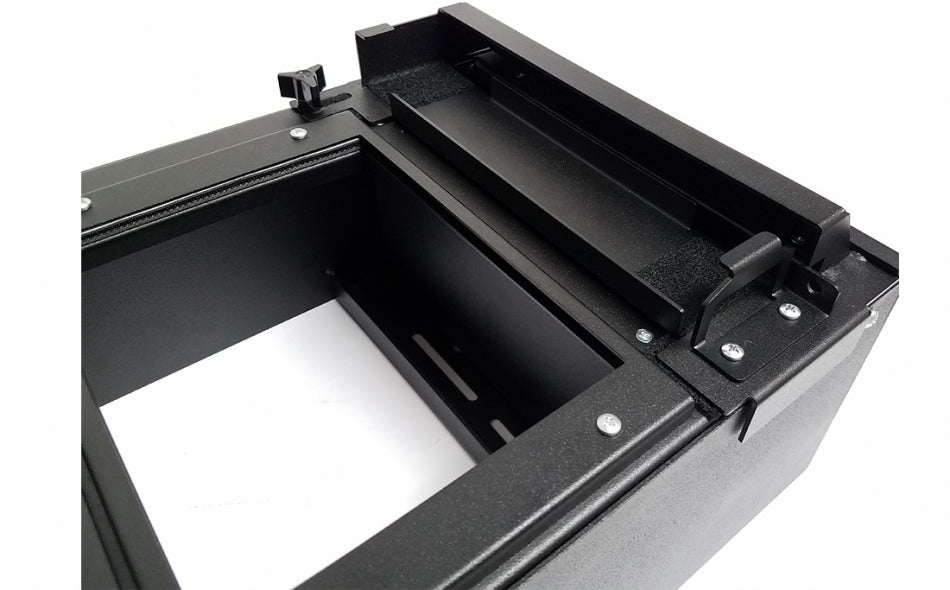

• Removable printer cover for easy reloading of printer paper

• Accommodates 1 to 2 full sized devices or faceplates (5” of mounting space)
• Two 12 Volt plug Knockouts, located on top passenger side and 2 knock-outs for switches , dual USB power ports, battery Voltage display, data / mic jack or USB / AUX input module extension

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
