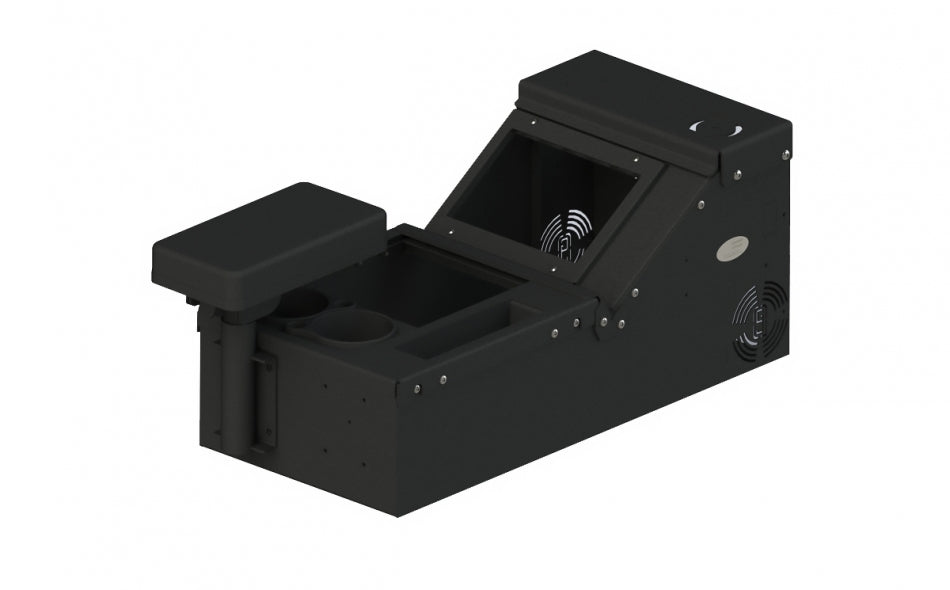

Wide Body Console with Cup Holder, Pocket and Armrest Kit

Wide Body Console with Cup Holder, Pocket and Armrest Kit
Wide Body Console with Cup Holder, Pocket and Armrest Kit
Wide Body Console with Cup Holder, Pocket and Armrest Kit
Wide Body Console with Cup Holder, Pocket and Armrest Kit

Gamber Johnson

$1,529.52
SKU: 7170-0567-01

KIT INCLUDES

  • Wide body console box (item no. 7160-0894)
  • Internal cup holder (item no. 7160-0846)
  • External break-away armrest (item no. 7160-0524)
  • 2-inch wide pocket (item no. 7160-0924)

FEATURES

Horizontal, low profile section:

  • Has a consistent mounting space height of 11.5". The included cup holder uses 4.5" (11.43 cm) of that space.
  • Designed to house full-sized devices and accessories.
  • Has additional side mounting area of 2-inch that will accommodate the pocket (item no. 7160-0924), 2-inch faceplate for switches or power ports or a smaller device.

Vertical, angled sections:

  • Accommodates 5" of mounting space for one to two full-sized devices or faceplates.
  • Two 12-volt plug knockouts, located on top passenger side and two knockouts for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.

Other Features:

  • Low profile, universal console with sloped front mounting area.
  • Designed to work with top plate/tunnel plate and leg kits.
  • Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.
  • PEM’s for mounting mic clip (item no. 7120-0723) on both sides.
  • Side vented openings for air flow or mounting a speaker inside the console box.
  • PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430).
  • Front plate of console underneath the dash area has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes.
  • Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access.
  • Fully welded construction for long term product life span.
  • 3 faceplates and 3 filler panels are included.
  • Box ships fully assembled (except for accessories).

SPECS

  • Height: 10.88" / 27.6 cm
  • Width: 11.83" / 30.1 cm
  • Depth: 26.75" / 26.8 cm

WARRANTY: LIMITED LIFETIME

  • A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
