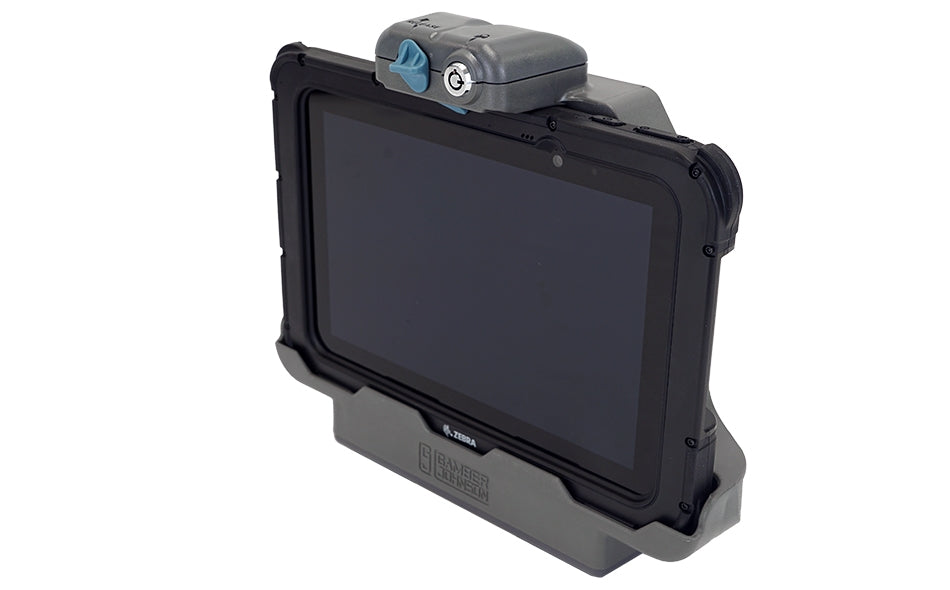

Zebra ET51/56 10" SLIM Charging Cradle w/External LIND 12-32 VDC Isolated Power Adapter
Gamber-Johnson's Zebra ET51/56 Tablet Charging Cradle will keep your ET51/56 computer charged all day long; This kit includes a LIND 12-32VDC isolated power adapter.
| DOCKING STATION | POWER SUPPLY |
|
Weight: 1.8 lbs / 0.82 kg Height: 10.67 in / 27.1 cm Width: 11.72 in / 29.77 cm Depth: 3.06 in / 7.77 cm |
Weight: 1.01 lbs / 0.46 kg Height: 1.2 in / 3.05 cm Width: 2.5 in / 6.35 cm Depth: 5.15 in / 13.08 cm |
ANTENNA PASS-THROUGH
- None
COMPATIBILITY
- Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
PORT REPLICATOR
- Power Input 12VDC through pogo pin connector
POWER SUPPLY INCLUDED
- Yes - LIND isolated material handling power adapter, 12-32 VDC input range, 12 VDC output voltage, 3.5 Amps output current with bare wire lead (7300-0466)
FEATURES
- Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
- This cradle does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the cradle
- Compatible with Windows or Android operating systems
- Access to all control buttons and ports while the tablet is safely docked
- Guide pins prevent damage to the charging pins when cradling the tablet
- Powered POGO pins transfer power to the Zebra tablet (requires external power adapter)
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of cradle
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra ET51/56 10" SLIM Tablet Charging Cradle
- LIND 12-32V isolated power adapter
- Mounting hardware
- Installation guide
WARRANTY
- Cradle: 3-Year Limited Warranty
- Power Adapter: 3-Year Warranty
