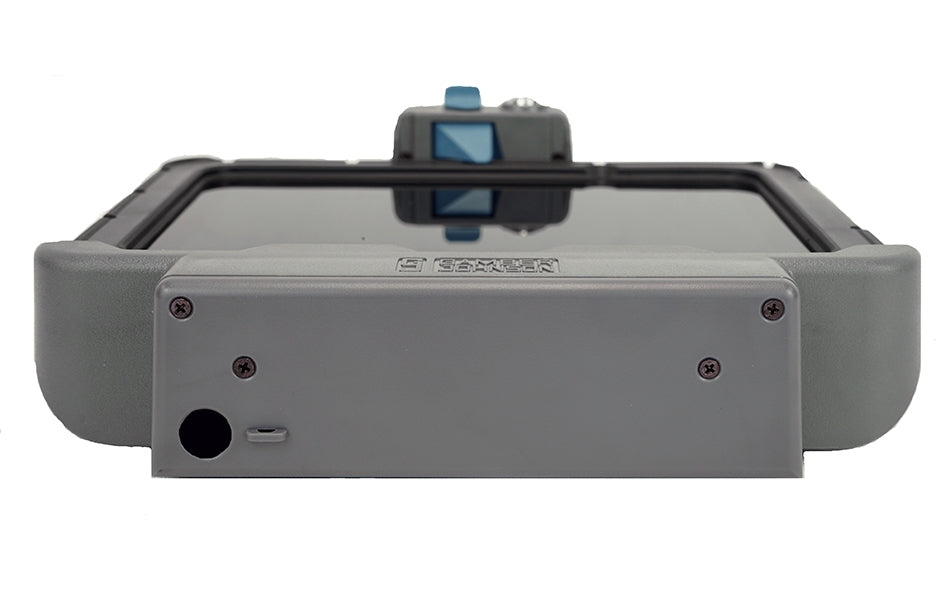

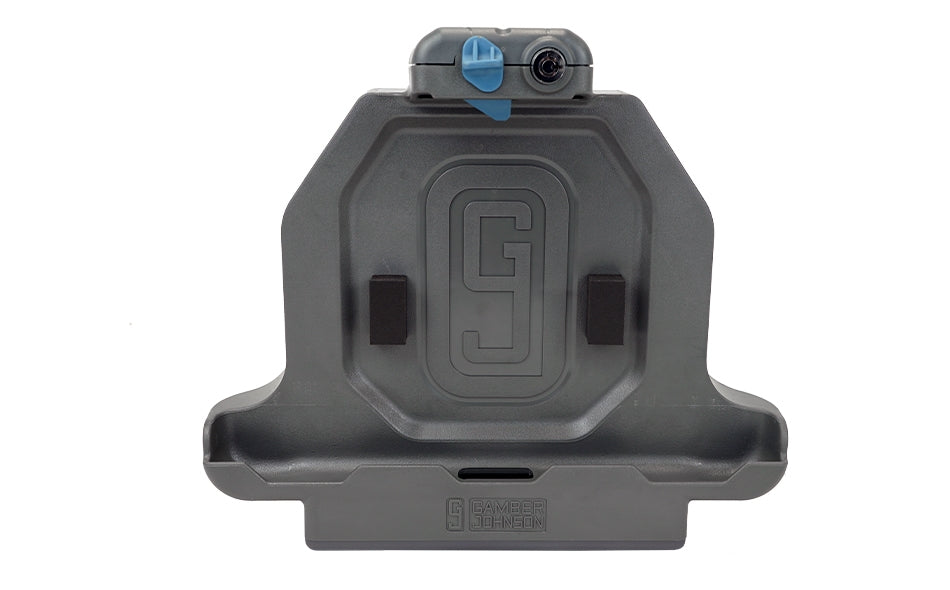

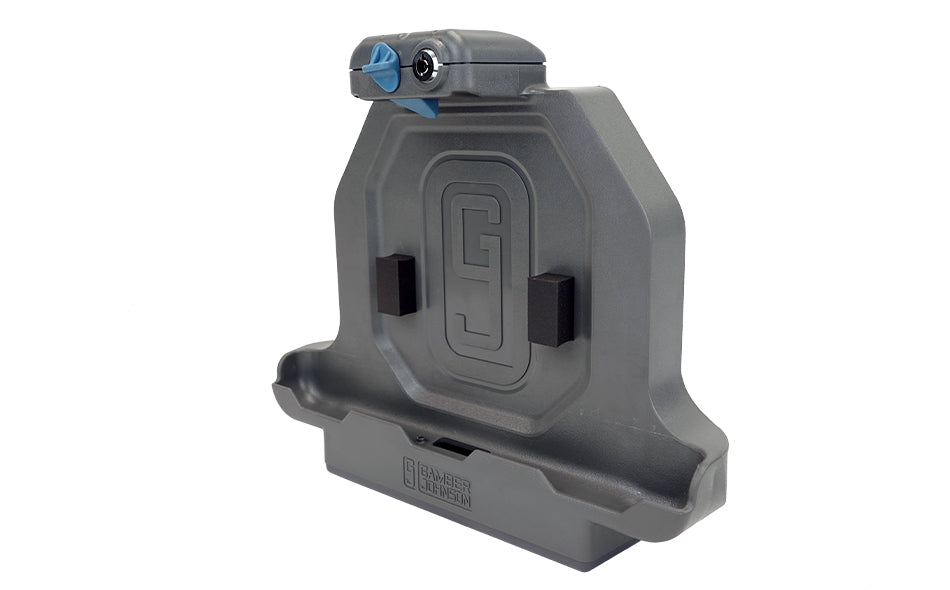

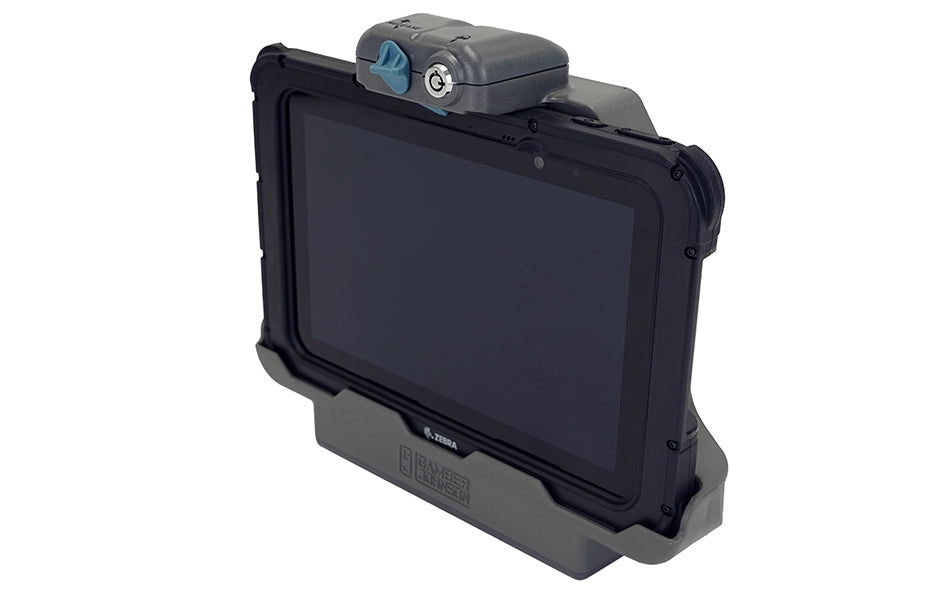

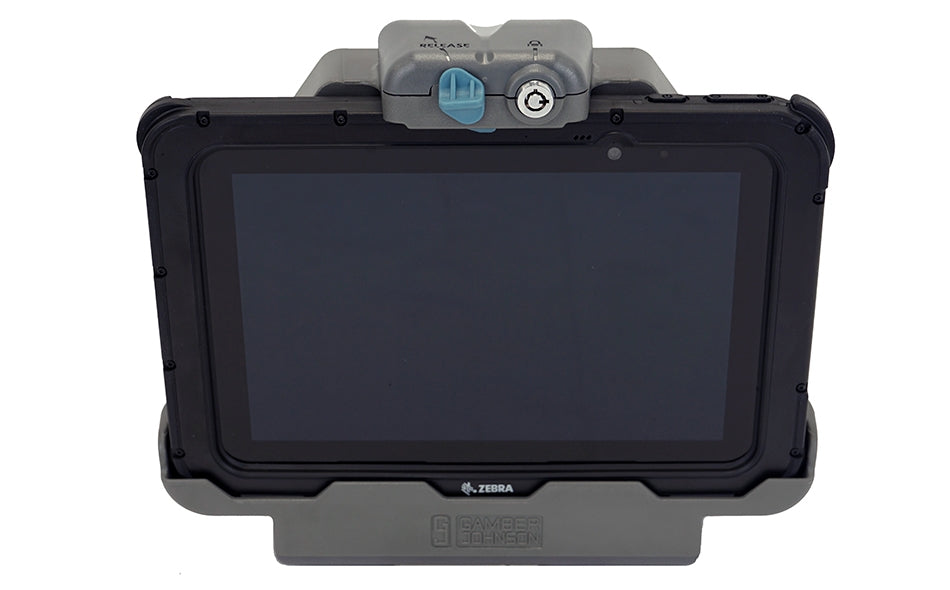

Zebra ET51/56 10" SLIM Cradle (No electronics)
Gamber-Johnson's Zebra ET51/56 Tablet Cradle (No electronics) is the perfect solution to protect and secure your ET51/56 computer if you don't require port replication. The ET51/56 tablet can still be powered with an external power adapter when it is in the cradle. The front-facing latch button makes one-handed cradle/release very easy and this cradle will attach to most Gamber-Johnson motion attachments with the VESA 75mm mounting pattern.
ANTENNA PASS-THROUGH
- None
COMPATIBILITY
- Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
PORT REPLICATOR
- None
POWER SUPPLY
- NOT included. Use power supplies:
- LIND 11-16V Auto power adapter (7300-0415)
- LIND 12-32V Isolated Power Adapter (7300-0466)
- LIND 20-60V Isolated Power Adapter (7300-0467)
- LIND 72-110V Isolated Power Adapter (7300-0418)
FEATURES
- Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
- This cradle does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the cradle
- Compatible with Windows or Android operating systems
- Access to all control buttons and ports while the tablet is safely docked
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of cradle
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
- MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications
- Height: 11.05 in / 28.07 cm
- Width: 11.72 in / 29.77 cm
- Depth: 3.06 in / 7.77 cm
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra ET51/56 10" SLIM Tablet Cradle
- Mounting hardware
- Installation guide
WARRANTY
- 3-Year Limited Warranty
