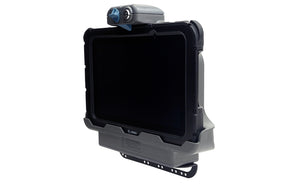

Zebra ET51/56 10" SLIM Port Replication Docking Station
Gamber-Johnson's Zebra ET51/56 10" SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. The 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments.
ANTENNA PASS-THROUGH
- None
COMPATIBILITY
- Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
PORT REPLICATOR
- Zebra Certified Electronics
- USB 3.0 (2) - 9 pin (900mA)
- RS232 Serial (1) - Power on pin 9 (825mA)
- Ethernet (1) - RJ45 (322 mb/s)
- Power Input: 12VDC
POWER SUPPLY
- NOT included. Use power supplies:
- LIND 11-16V Auto power adapter (7300-0415)
- LIND 12-32V Isolated Power Adapter (7300-0466)
- LIND 20-60V Isolated Power Adapter (7300-0467)
- LIND 72-110V Isolated Power Adapter (7300-0418)
FEATURES
- Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
- This dock does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the docking station
- Compatible with Windows or Android operating systems
- Access to all control buttons and ports while the tablet is safely docked

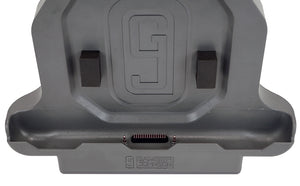

- POGO pin connector provides power to charge the Zebra tablet while docked

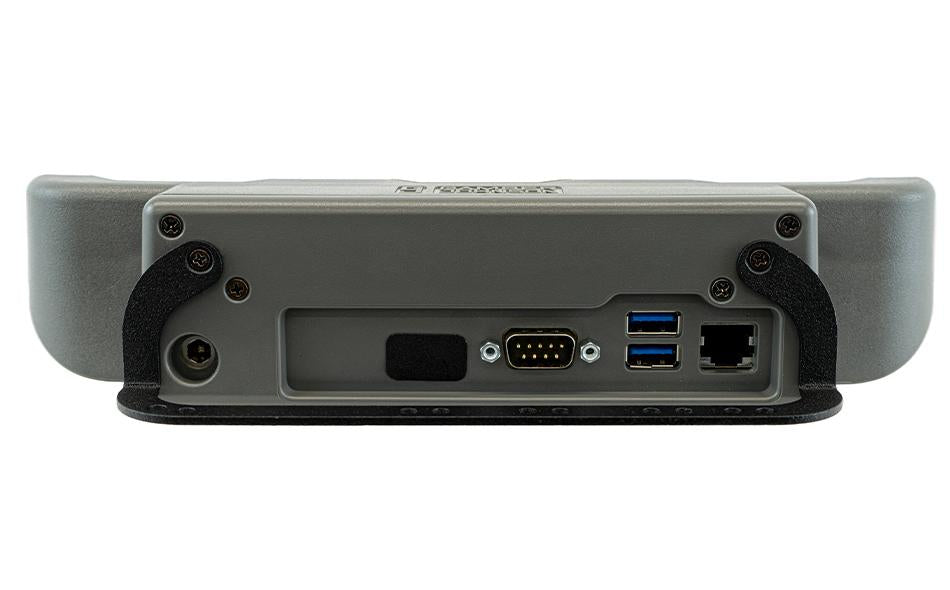

- Bottom-facing I/O ports; integrated cable restraint/cable management system
- Guide pins prevent damage to the docking connection when docking the tablet
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence

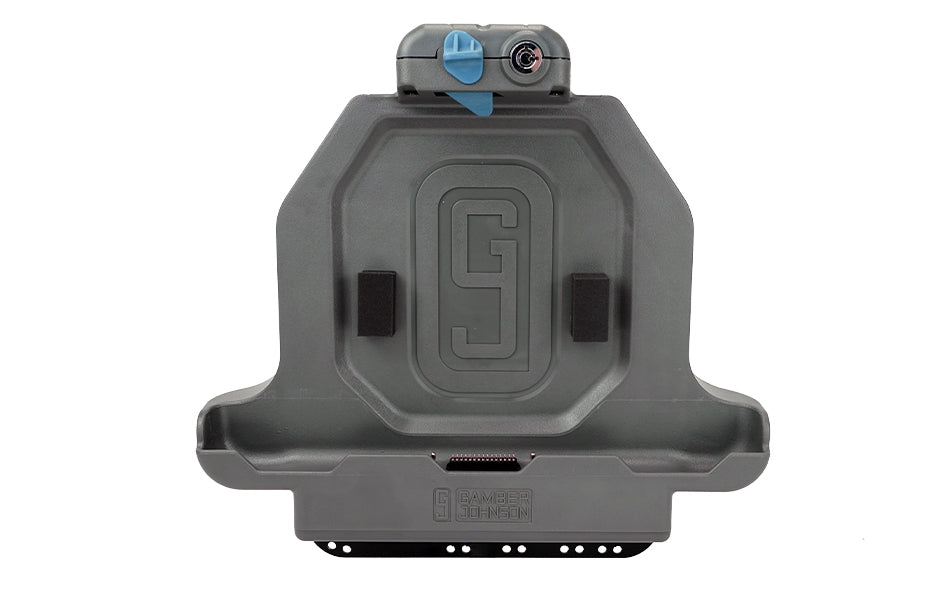

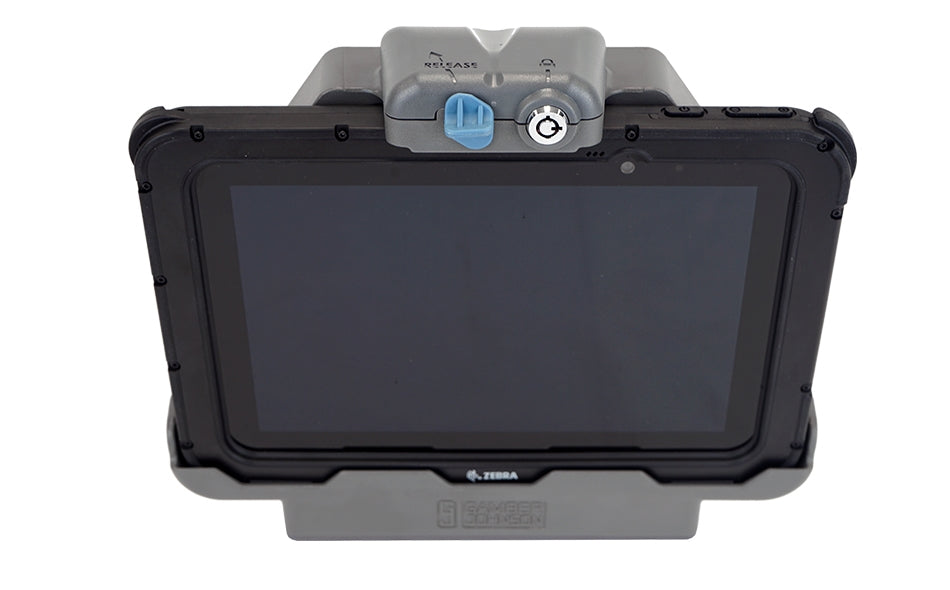

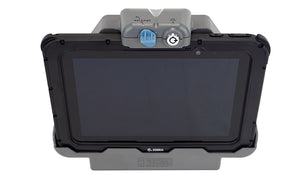

- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of docking station
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
- Height: 11.05 in / 28.07 cm
- Width: 11.72 in / 29.77 cm
- Depth: 3.06 in / 7.77 cm
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
INCLUDES
- Zebra ET51/56 10" SLIM Port Replication Docking Station
- Mounting hardware
- Installation guide
WARRANTY
- 3-Year Limited Warranty
