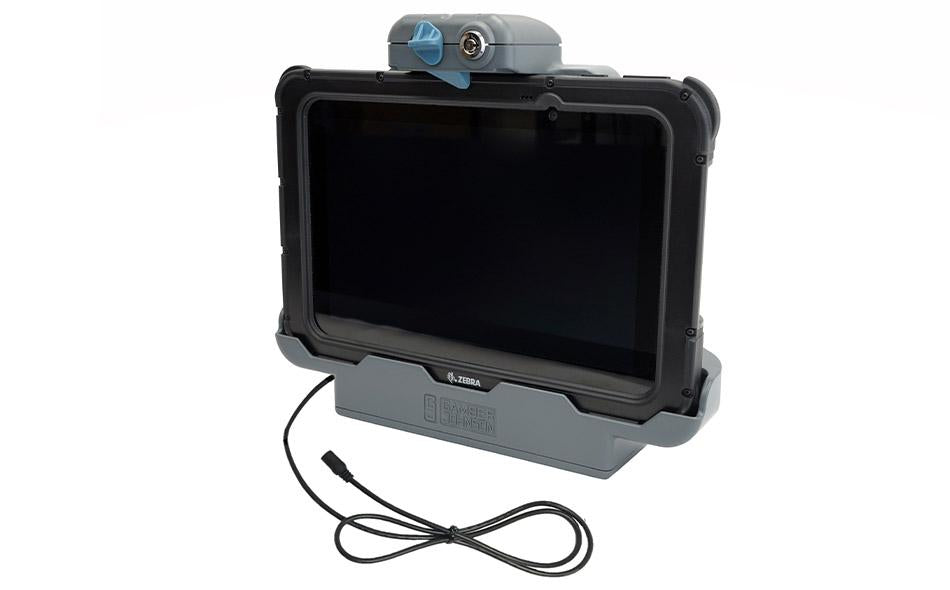

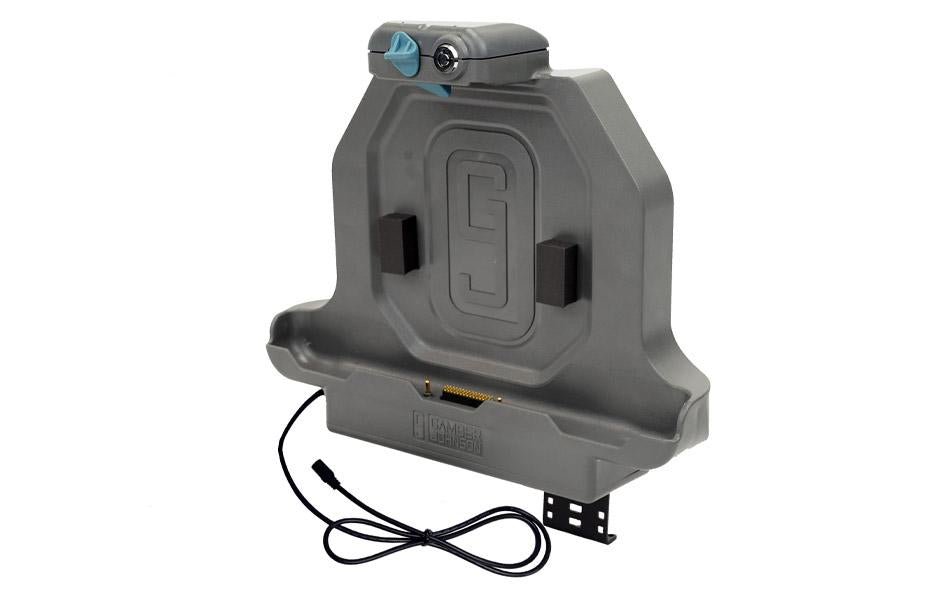

Zebra ET51/56 8" SLIM Dual USB Docking Station with MP205 Connection
Gamber-Johnson's Zebra ET51/56 8" SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. Easily connect this docking station to an external power adapter using the MP205 connector on the power cable.
ANTENNA PASS-THROUGH
- None
COMPATIBILITY
- Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
PORT REPLICATOR
- (2) Powered USB 2.0 (1.5A each)
POWER SUPPLY
- Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked.
- Optional available external power adapters with MP205 connectors include:
- LIND 12-32V isolated material handling power adapter with MP205 connector (7300-0447)
- LIND 20-60V isolated material handling power adapter with MP205 connector (7300-0473)
- LIND 70-110V isolated material handling power adapter with MP205 connector (7300-0448)
FEATURES
- Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
- This docking station does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the docking station
- Compatible with Windows or Android operating systems

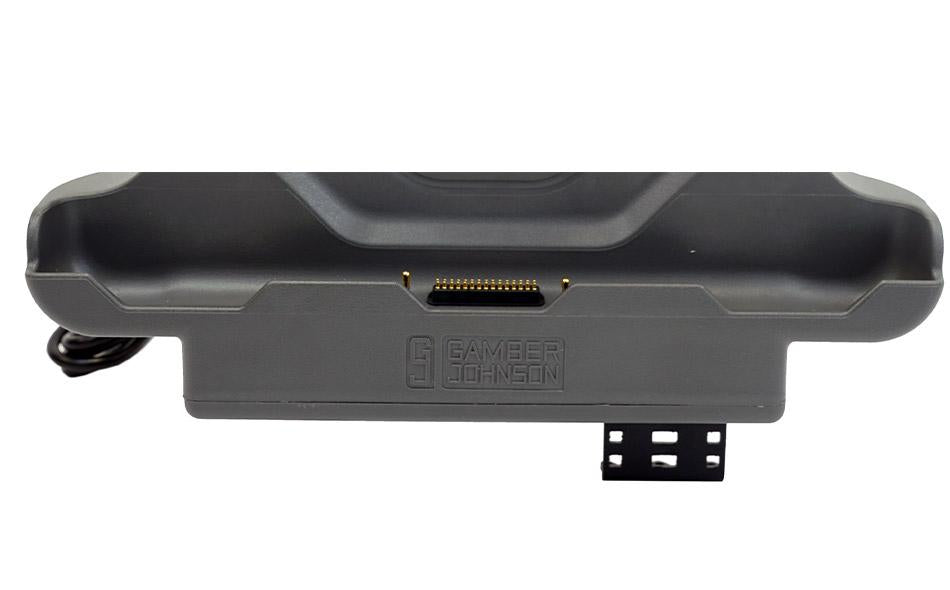

- POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
- 8-40V power input range with power filtering PCB
- Dual powered USB ports; 1.5A for each port to connect peripheral devices
- Access to all control buttons and ports while the tablet is safely docked

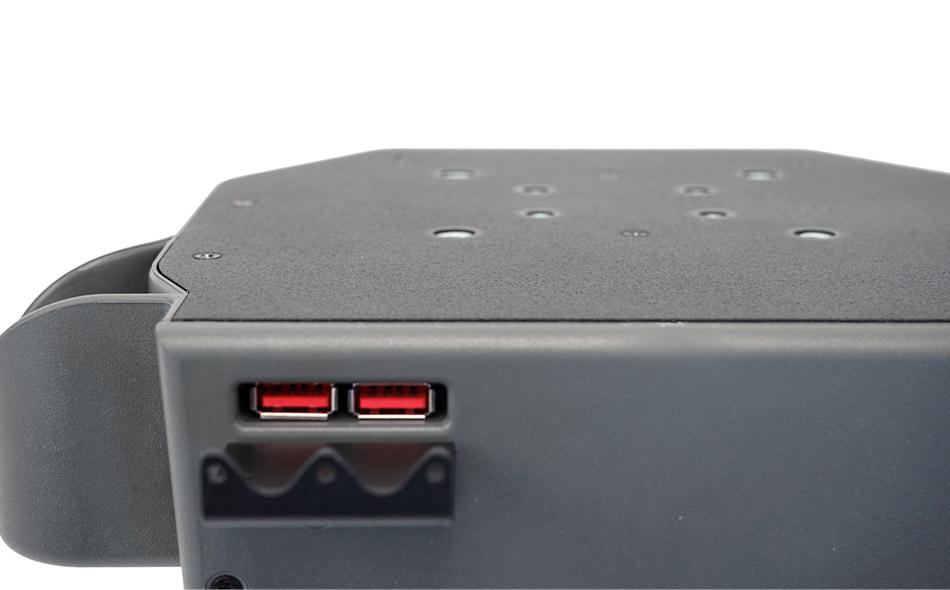

- Bottom-facing I/O ports; integrated cable restraint/cable management system
- 40" power cable with MP205 in-line jack to quickly connect to a compatible power adapter
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of docking station

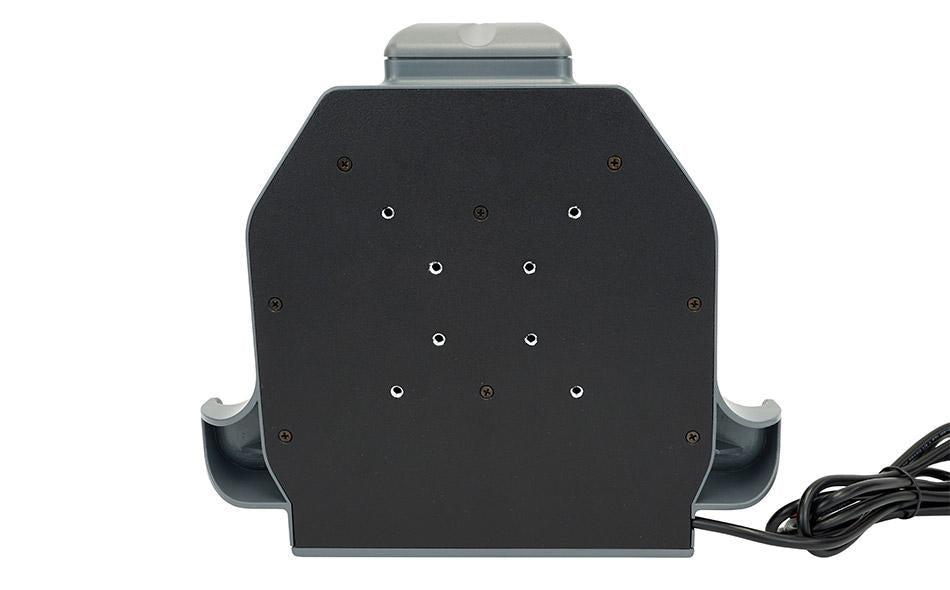

- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
- Height: 8.75 in / 22.23 cm
- Width: 9.93 in / 25.22 cm
- Depth: 3.12 in / 7.92 cm
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra ET51/56 8" SLIM Dual USB Docking Station with MP205 Connection
- Mounting hardware
- Installation guide
WARRANTY
- 3-Year Limited Warranty
