Gamber Johnson

$1,174.83
SKU: 7160-1506-20

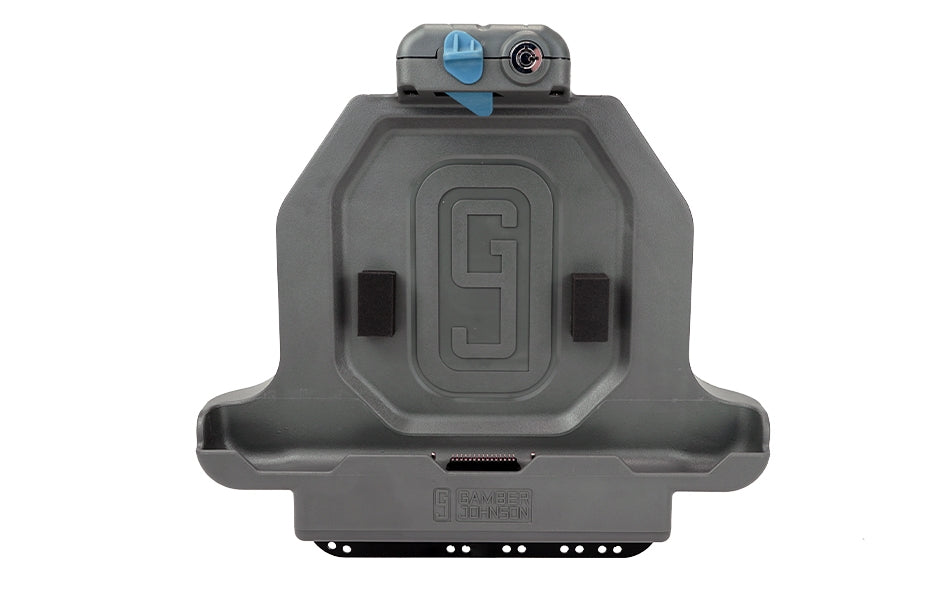

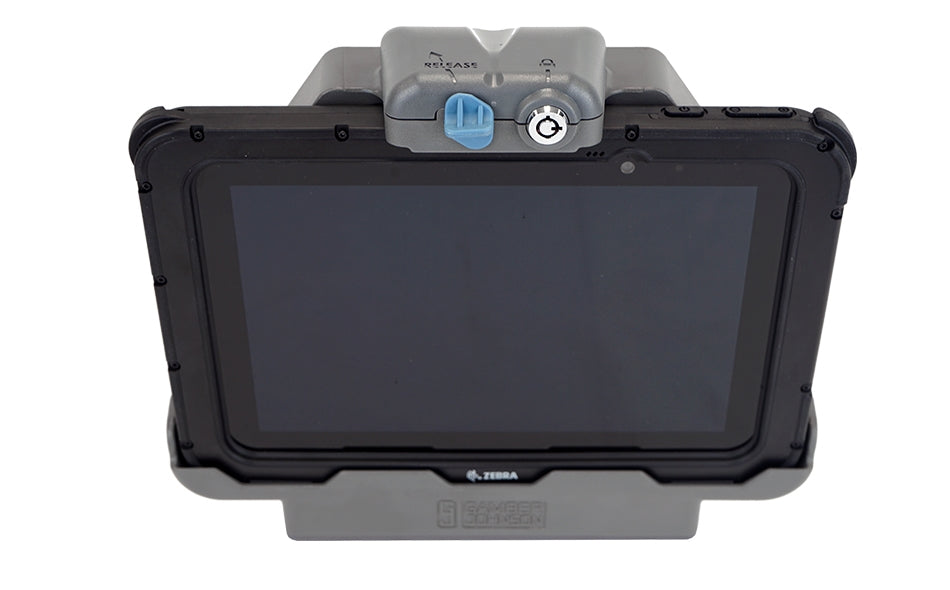

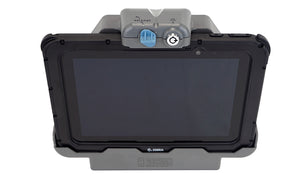

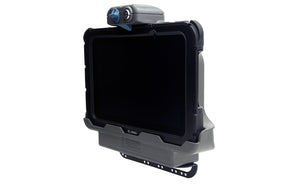

Gamber-Johnson's Zebra ET51/56 8" SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. The 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments.

*Starting Aug 23rd 2022 Gamber-Johnson does not offer HDMI output on all ET5X docks because of global video chip shortages

ANTENNA PASS-THROUGH

  • None

COMPATIBILITY

  • Compatible with Zebra ET51/56 rugged tablet computer with rugged frame

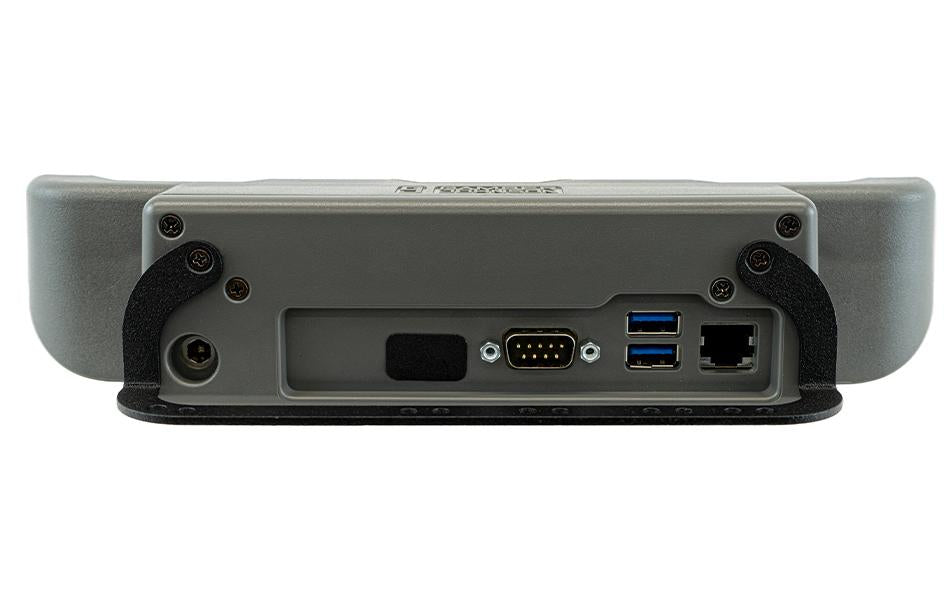

PORT REPLICATOR

  • Zebra Certified Electronics
  • USB 3.0 (2) - 9 pin (900mA)
  • RS232 Serial (1) - Power on pin 9 (825mA)
  • Ethernet (1) - RJ45 (322 mb/s)
  • Power Input: 12VDC

POWER SUPPLY

  • NOT included. Use power supplies:
    • LIND 11-16V Auto power adapter (7300-0415)
    • LIND 12-32V Isolated Power Adapter (7300-0466)
    • LIND 20-60V Isolated Power Adapter (7300-0467)
    • LIND 72-110V Isolated Power Adapter (7300-0418)

FEATURES

  • Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
  • This dock does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked

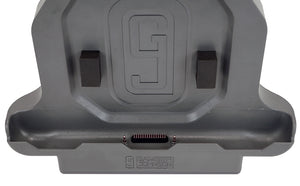

  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Guide pins prevent damage to the docking connection when docking the tablet
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
  • Height: 8.75 in / 22.23 cm
  • Width: 9.93 in / 25.22 cm
  • Depth: 3.12 in / 7.92 cm

TESTING & CERTIFICATES

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
  • SAE J1455 Crash Tested
  • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
  • RoHS, FCC, CE Certifications

INCLUDES

  • Zebra ET51/56 8" SLIM Port Replication Docking Station
  • Mounting hardware
  • Installation guide

WARRANTY

  • 3-Year Limited Warranty
