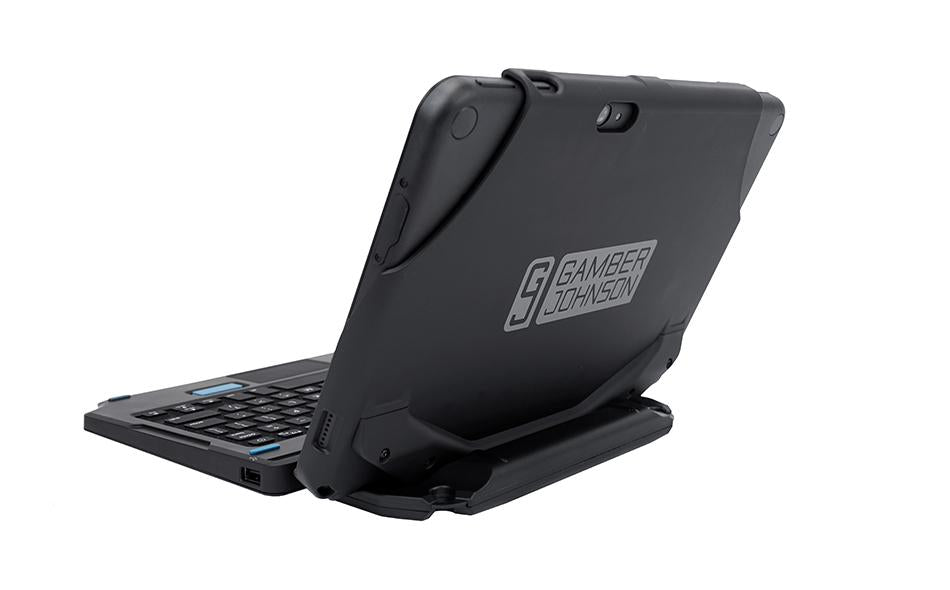

Zebra ET5X 10" 2-in-1 Attachable Keyboard
Gamber-Johnson’s attachable keyboard for the Zebra ET5X Series 10" enterprise rugged tablet is the perfect solution for the mobile worker. Install the tablet in seconds to add the functionality of a keyboard with a smooth responsive feel with features you are familiar with. The USB port can be used to attach a flash drive or another peripheral and the keyboard’s hard carry handle makes it easy to carry your tablet/keyboard combo anywhere.
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- (1) USB 2.0 (2) (500mA)
POWER SUPPLY
- Charge the tablet directly from the tablet's USB-C port, the tablet provides power to the keyboard
FEATURES
- Designed for the Zebra ET5X 10” Series Enterprise tablet without rugged frame (Windows or Android compatible)
- Integrated center touchpad with right and left mouse buttons
- 76-key keyboard with 12 function keys for custom operation
- Silicone rubber keys with white lettering and a rugged polycarbonate case

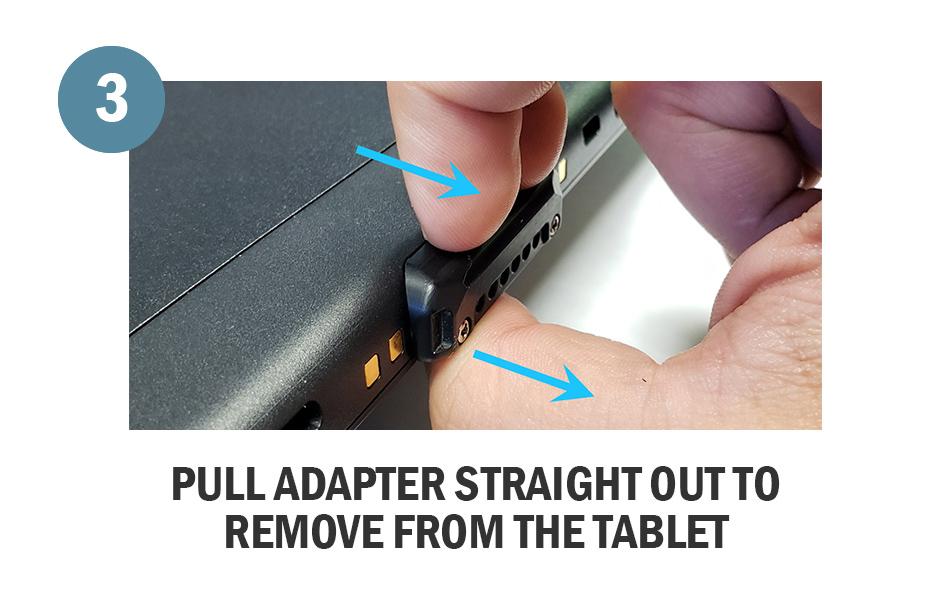

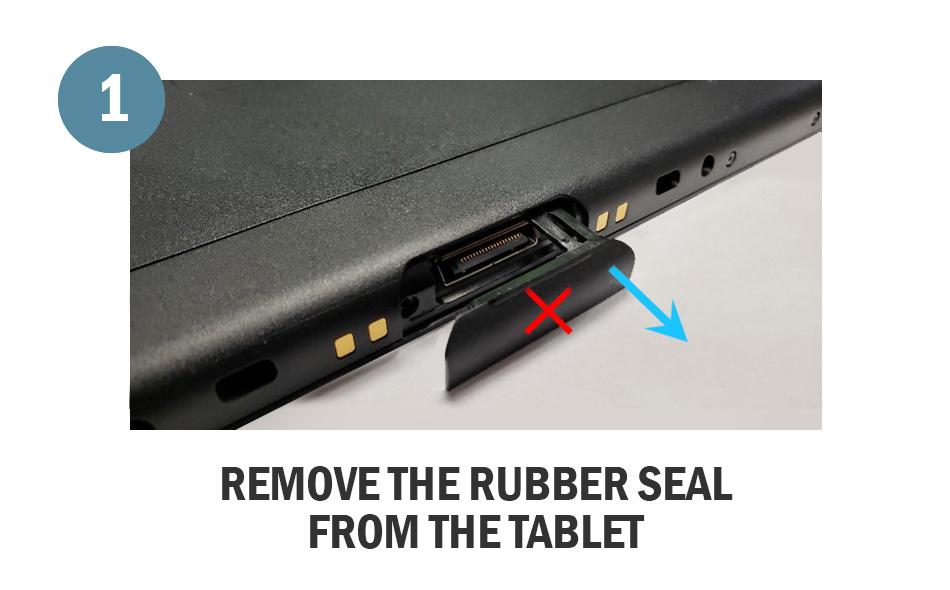

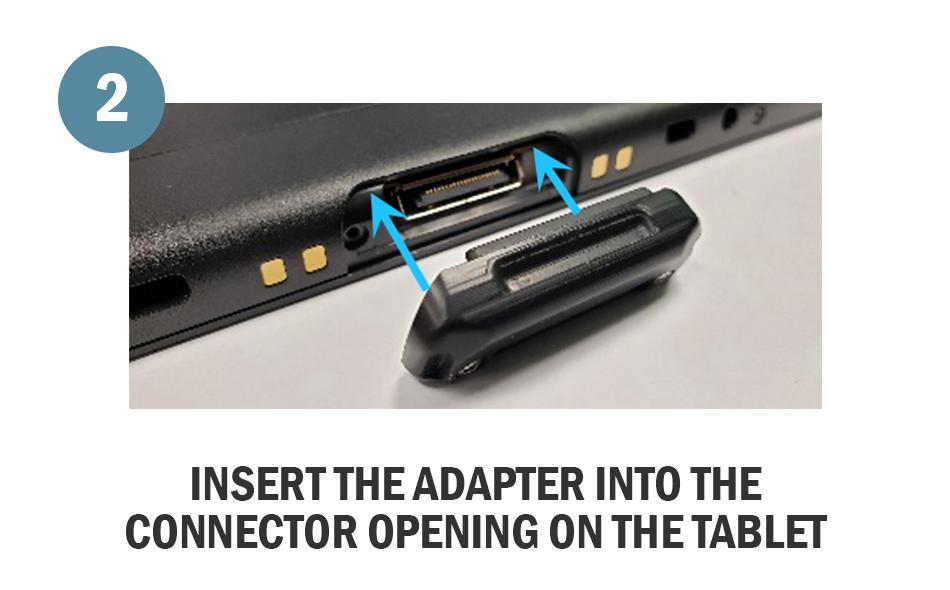

- Easy to install - POGO docking connector links the tablet to the keyboard
- Easily connect the tablet to the keyboard; snap the pogo connector onto the tablet, slip the bottom of the tablet into the case and snap the top of the case over the tablet
- USB 2.0 port (500mA) to attach a mouse, another peripheral, or flash drive
- Charge the tablet directly from the tablet's USB-C port
- All computer features including camera, microphone, speakers, USB-C port and all control buttons are accessible when the tablet is docked onto the keyboard
- Friction hinge and screen footrest with rubber feet help position the tablet at a comfortable viewing angle
- Hard carry handle with two attachment rings for shoulder strap enhance portability
- Low-profile ergonomic design for ease of use in a mobile environment
- Available in US English (7160-1585-00), UK (7160-1585-01), German (7160-1585-02), French (7160-1585-03), Spanish (7160-1585-04), 7160-11585-05 (French CA), and 7160-1585-06 (Thai).
- Contact Gamber-Johnson for other language options.
- Height: 2.03 in / 5.16 cm
- Width: 10.8 in / 27.43 cm
- Depth: 9.71 in / 24.66 cm
SPECIFICATIONS
- USB-A (2.0) Port: 5V @ 500mA
- Tablet input power: 5.4V, 1.5A
- Temperature range:
- OPERATING: -20°C to 50°C
- STORAGE: -40°C to 85°C
- IP54 ingress specifications: Keyboard
- IP65 ingress specifications: Connector Adapter
-
Drop Test:
- 1 meter (39.4”) to concrete: Tablet and Connector Adapter
- 0.61 meter (24”) to wood: Tablet with Keyboard System
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (Operational: -20°C to 50°C/Storage: -40°C to 85°C)
- Cycle Tested: 3K Cycles - Insertions, 30K Cycles - Hinge Mechanism
- Key Cycle Test - 2 Million Press Cycles
- Key Surface Chemical Resistance
CERTIFICATES
- Zebra Certified
- ROHS, REACH, FCC, CE, C-TICK, UKCA
- EN/IEC/UL 62368
KIT INCLUDES
- Zebra ET5X 10" 2in1 Attachable Keyboard (7160-1585-00)
- Quick Guide
WARRANTY
- 1-Year Limited Warranty
