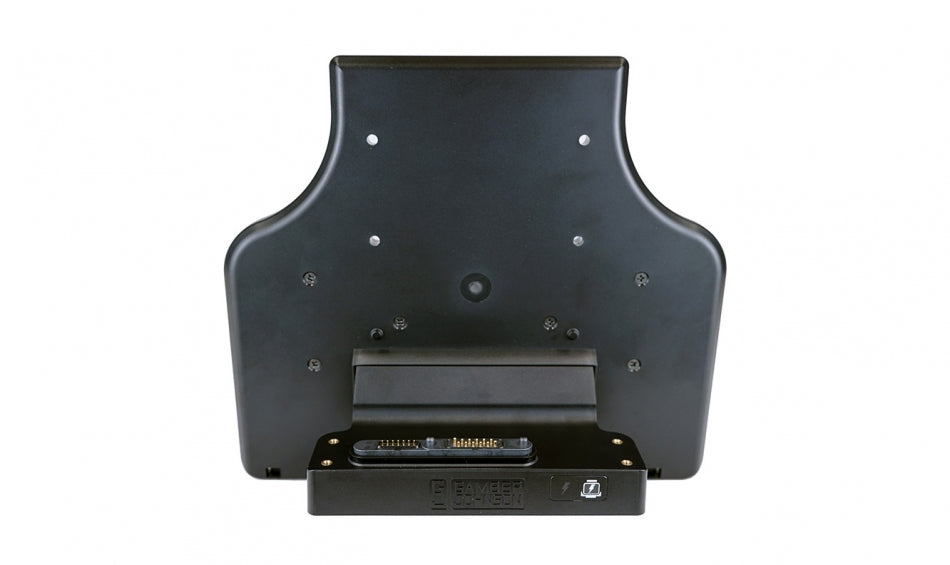

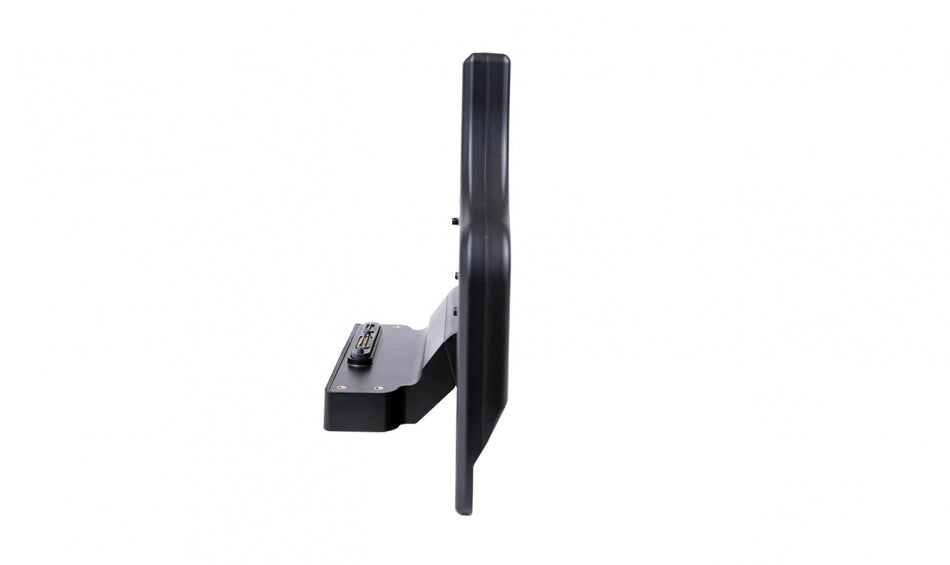

Zebra L10 Android Tablet Docking Station Module

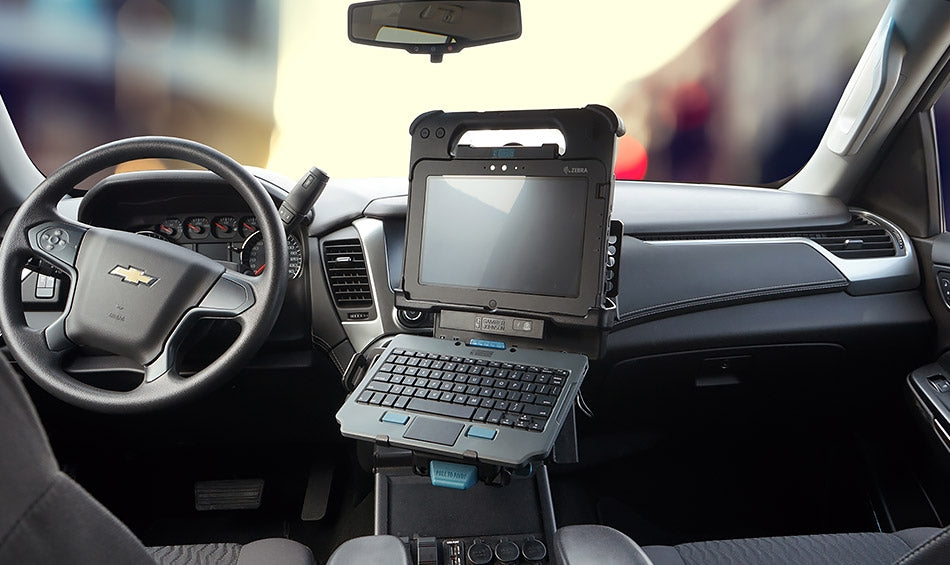

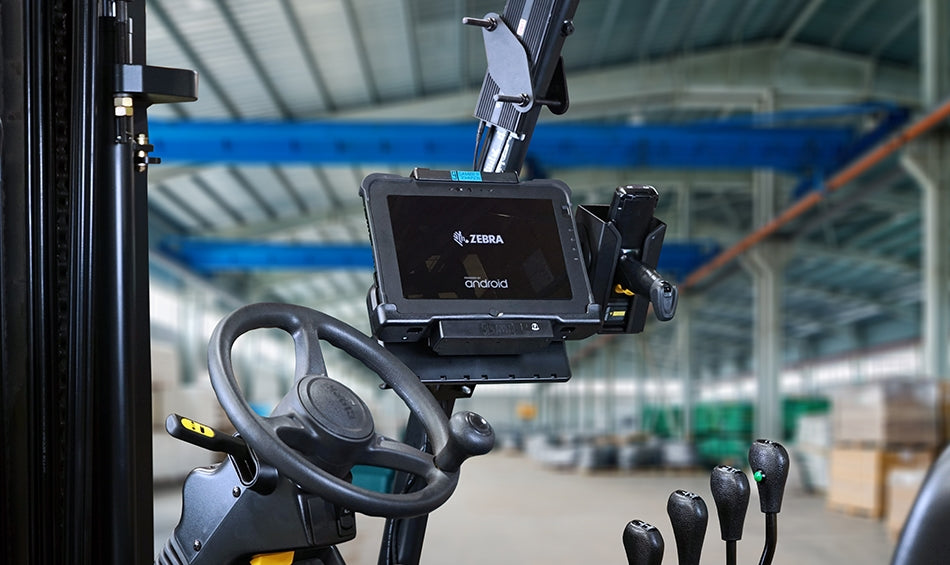

This add-on dock module can be attached to your existing Zebra Tablet vehicle cradle to transform it into a docking station with full port replication.
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- USB 2.0 (2) - 9 pin (900mA)
- USB 2.0 (2) - 4 pin (500 mA)
- USB 2.0 (1) - 4 pin (500mA) behind internal access door
- RS232 Serial (1) - Power on pin 9 (825mA)
- Microphone
- Headphones / Speakers
- Power Input 19Vdc
FEATURES
- This Module is compatible with the Zebra L10 vehicle cradle 7110-1292
- This module is not compatible with the Zebra xDIM G3 Docking Interface Module
- Sealed docking connector to protect against moisture
- RS232 pin 9 function switch, activate switch to power pin 9 (825mA)
- Dock LED indicator lights: Tablet is docked, Dock is Powered
- Access door to internal USB 2.0 port provides additional security
- Floating protected docking connector for years of reliable connectivity
- Bottom-facing port replication for connection to remote peripherals
- Integrated cable straint and cable management system
- VESA 75mm and 50 x 100mm mounting patterns
- Width: 10.0 in / 25.4 cm
- Height: 9.0 in / 22.86 cm
- Depth: 3.75 in / 9.52 cm
WARRANTY
- 3-Year Limited Warranty
