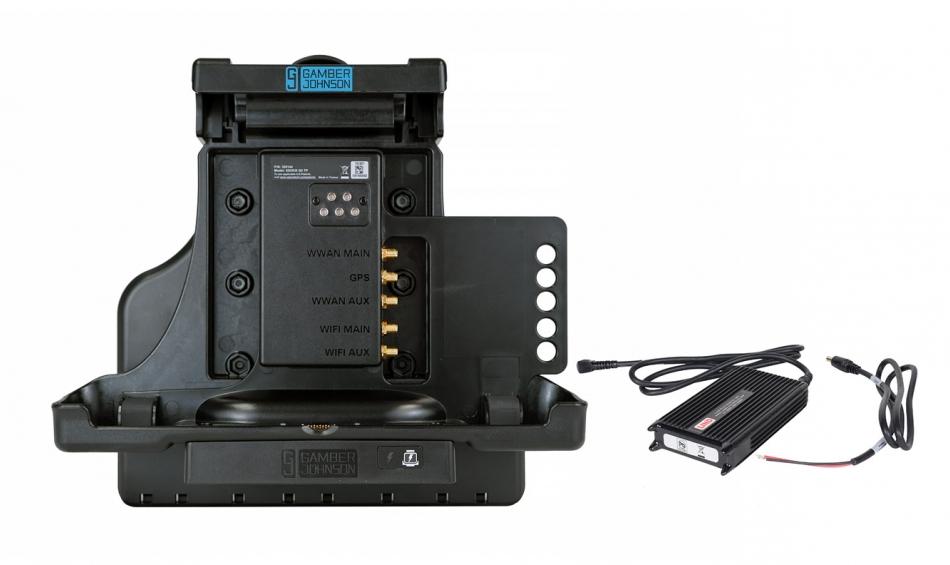

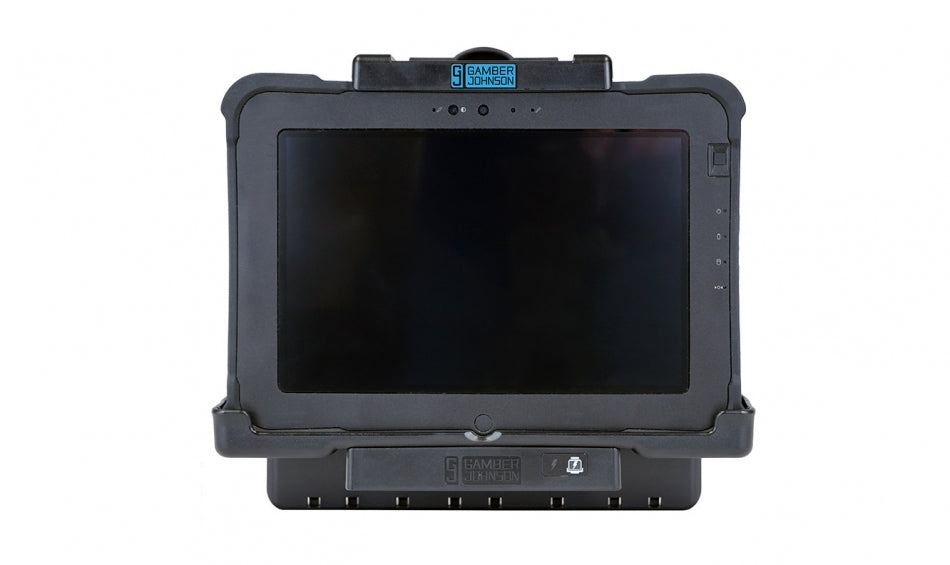

Zebra L10 Android Tablet Vehicle Docking Station (5x RF-SMA) with Lind Auto Adapter
This Zebra tablet vehicle docking station for the Zebra L10 xPad or xSlate tablet provides full port replication with powered RS232, 5X RF pass-through, and a keyed lock for security. This kit comes with a LIND 12-16V auto power adapter.

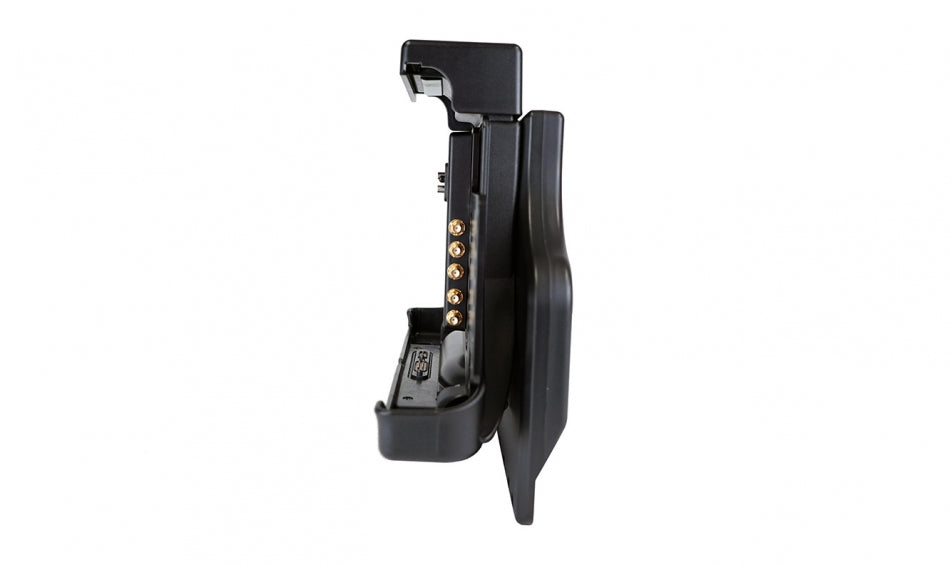

ANTENNA PASS-THROUGH
- SMA - (WWAN Main, GPS, WWAN Aux, WIFI Main, WIFI Aux)
COMPATIBILITY
- Zebra L10 Android XSLATE or XPAD tablet computer

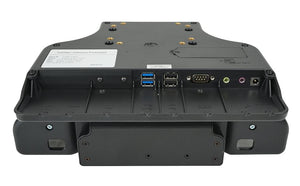

PORT REPLICATOR
- Zebra Certified Electronics
- USB 2.0 (2) - 9 pin (900mA)
- USB 2.0 (2) - 4 pin (500 mA)
- USB 2.0 (1) - 4 pin (500mA) behind internal access door
- RS232 Serial (1) - Power on pin 9 (switch)
- Microphone
- Headphones / Speakers
- Power Input 19Vdc
POWER ADAPTER
- Includes 12-16V auto power adapter (7300-0484) with bare wire lead
FEATURES
- Compatible with the Zebra L10 ANDROID xPad and xSlate tablets
- Docking Station design accommodates the L10 Extended battery, Smart Card/CAC Reader module, True Serial(RS232) module, Hard handle, Soft handle, and Shoulder Strap.
- Kit includes ZEBRA L10 ANDROID Tablet vehicle docking station with 5X RF (7160-1453-05) and Lind 90W Power adapter (7300-0484)
- Sealed docking connector to protect against moisture
- RS232 pin 9 function switch, activate switch to power pin 9 (5V)
- LED indicator lights show when "tablet is docked" and "dock is powered"
- Access door to internal USB 2.0 port provides additional security
- Floating docking connector for reliable docking activation
- Bottom-facing I/O ports; integrated cable restraint/cable management system
- Forward facing docking latch/release for easy one handed operation
- Insert bottom of computer into docking station, push top of computer in and pull latch forward until latch engages
- To remove, lift latch to disengage and pull computer out of docking station
- Keyed alike lock for security and theft deterrence

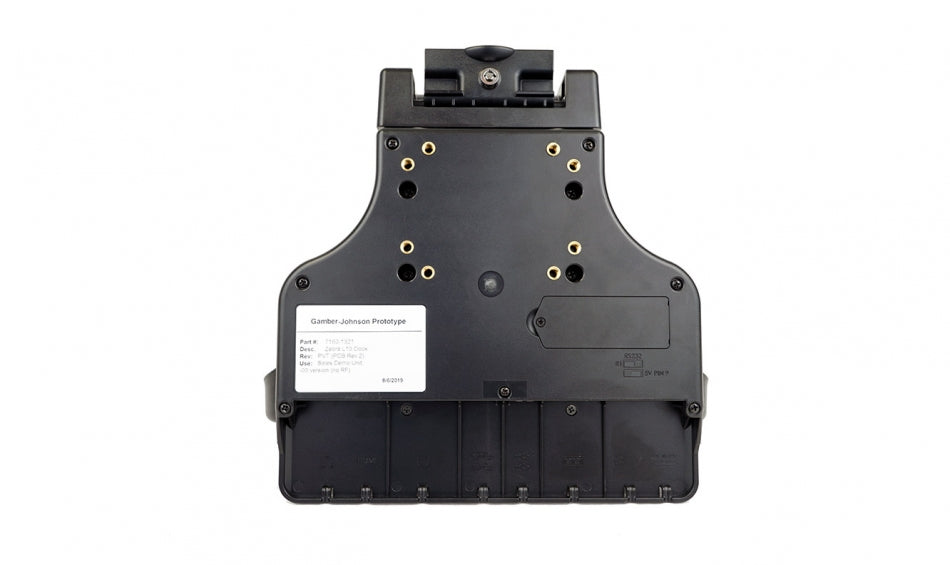

- VESA 75mm and 50 x 100mm mounting patterns
- Rounded edges to enhance personal safety
- Composite/aluminum design for reduced weight and durability
- RF pass-through SMA (WWAN Main, GPS, WWAN Aux, WIFI Main, WIFI Aux)
- Height: 10.63 in / 27 cm
- Width: 11.81 in / 30 cm
- Depth: 3.94 in / 10.01 cm
- Weight - Docking Station: 3.75 lbs / 1.7 kg | Power Adapter: 1 lbs / 0.45 kg
CERTIFICATES & TESTING
- Zebra Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature (storage/operational), Thermal Shock
- SAE J1455 Crash Tested
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra L10 Android 5X RF Docking Station
- LIND auto power adapter
- Mounting Hardware
- Installation Instructions
WARRANTY
- 3-Year Limited Warranty
