Gamber Johnson

$1,448.59
SKU: 7170-0805

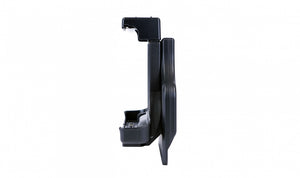

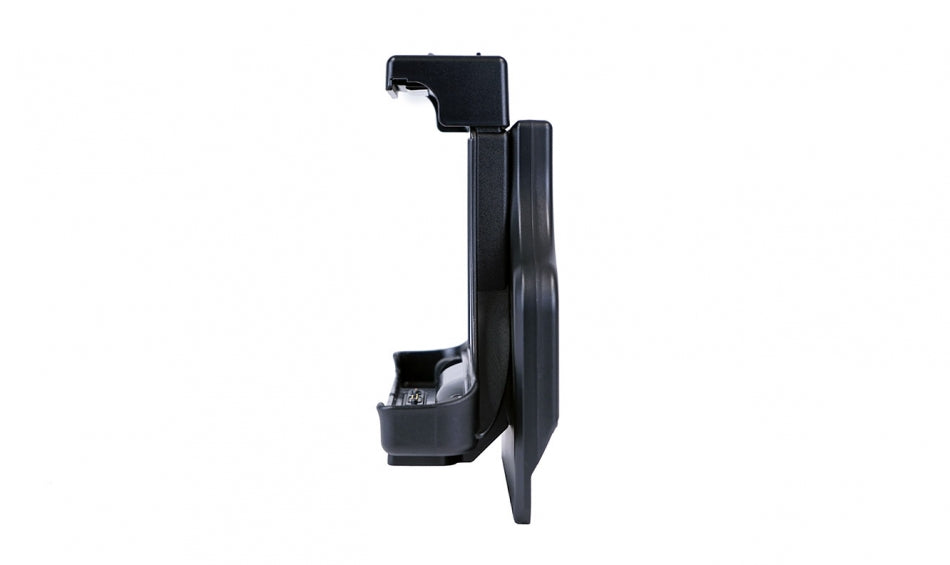

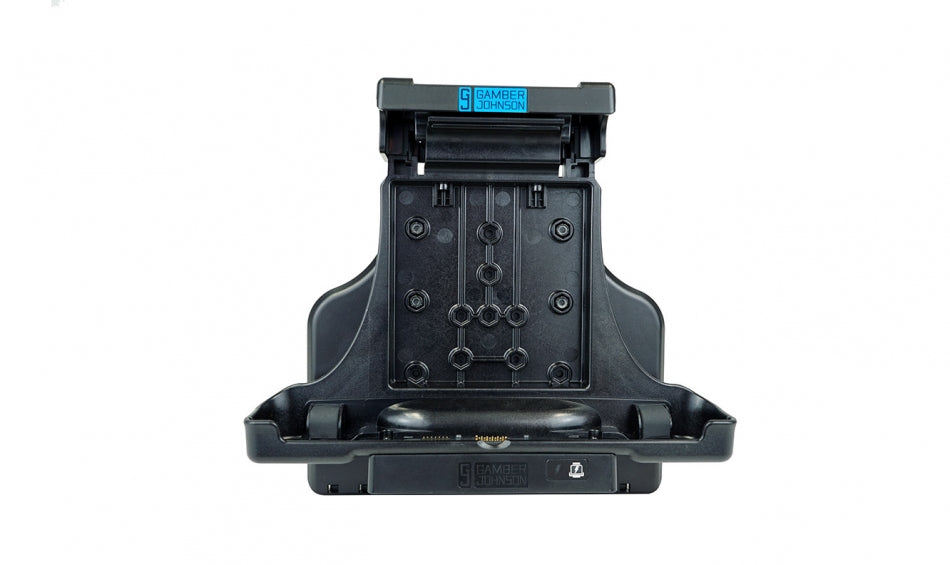

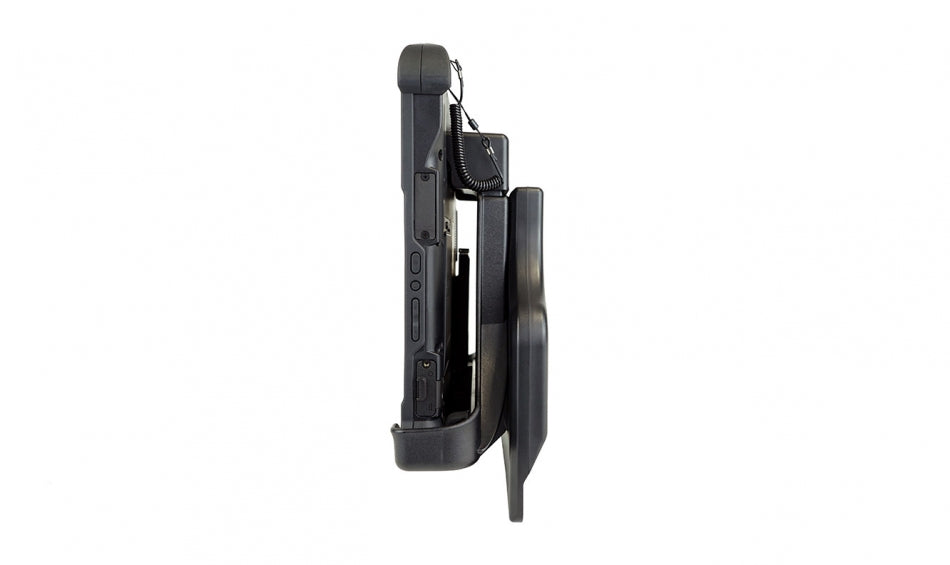

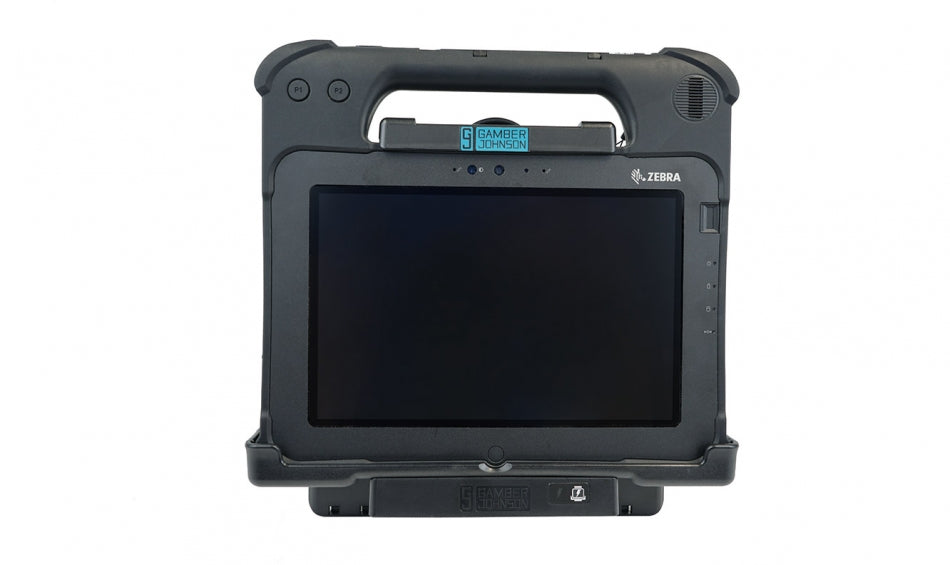

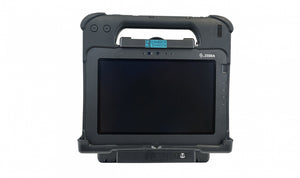

This Zebra tablet vehicle docking station for the Zebra L10 xPad or xSlate tablet provides full port replication with powered RS232, and a keyed lock for security. Connect the docking station to the LIND power adapter included in this kit.

ANTENNA PASS-THROUGH

  • None

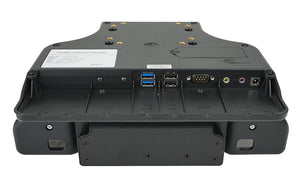

PORT REPLICATOR

  • USB 2.0 (2) - 9 pin (900mA)
  • USB 2.0 (2) - 4 pin (500 mA)
  • USB 2.0 (1) - 4 pin (500mA) behind internal access door
  • RS232 Serial (1) - Power on pin 9 (825mA)
  • Microphone
  • Headphones / Speakers
  • Power Input 19Vdc

FEATURES

  • Compatible with the Zebra ANDROID L10 xPad and xSlate tablets

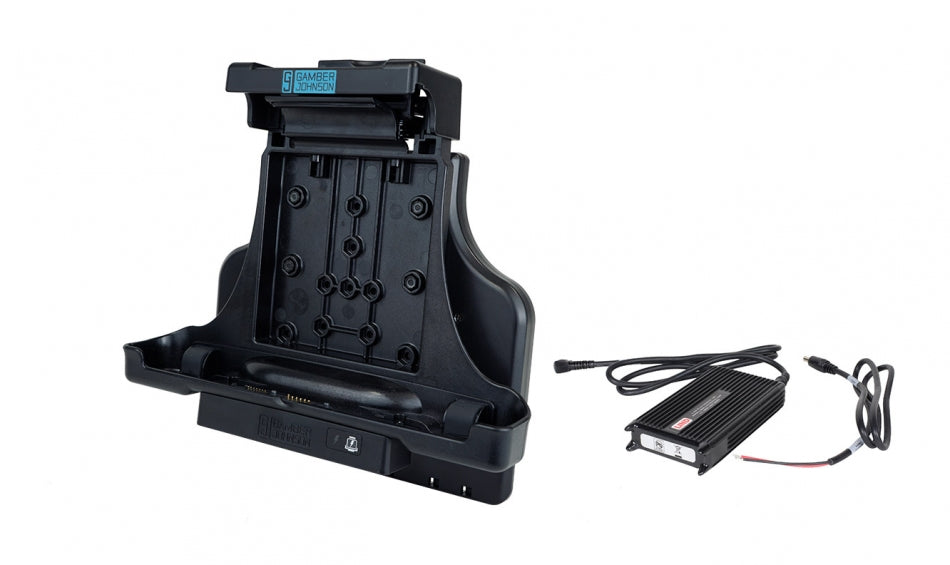

  • Kit includes ZEBRA L10 ANDROID Tablet vehicle docking station NO RF (7160-1453-00) and Lind 12-16V Power adapter (7300-0484)
  • Docking Station design accommodates the L10 Smart Card/CAC Reader module, True Serial (RS232) module, Hard handle, Soft handle, and Shoulder Strap.
  • Sealed docking connector to protect against moisture
  • RS232 on power pin 9 (825mA)
  • LED indicator lights show when "tablet is docked" and "dock is powered"
  • Access door to internal USB 2.0 port provides additional security
  • Floating docking connector for reliable docking activation
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Forward facing docking latch/release for easy one handed operation
    • Insert bottom of computer into docking station, push top of computer in and pull latch forward until latch engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • Keyed alike lock for security and theft deterrence

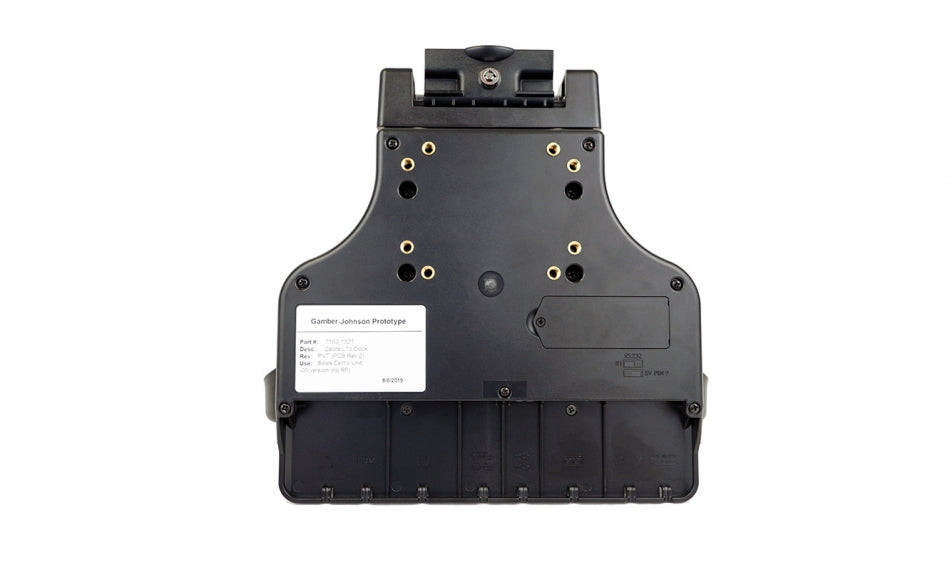

  • VESA 75mm and 50 x 100mm mounting patterns
  • Rounded edges to enhance personal safety
  • Composite/aluminum design for reduced weight and durability
  • Width: 11.81 in / 29.99 cm
  • Height: 10.63 in / 27.0 cm
  • Depth: 3.94 in / 10.0 cm
  • Weight: Docking Station: 3.75 lbs / 1.70 kg | Power Adapter: 1.0 lbs / 0.45 kg

WARRANTY

  • 3-Year Limited Warranty
