Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module

Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module
Zebra L10 Tablet Vehicle Docking Station / Cradle - RF Module

Gamber Johnson

$456.47
SKU: 7110-1293

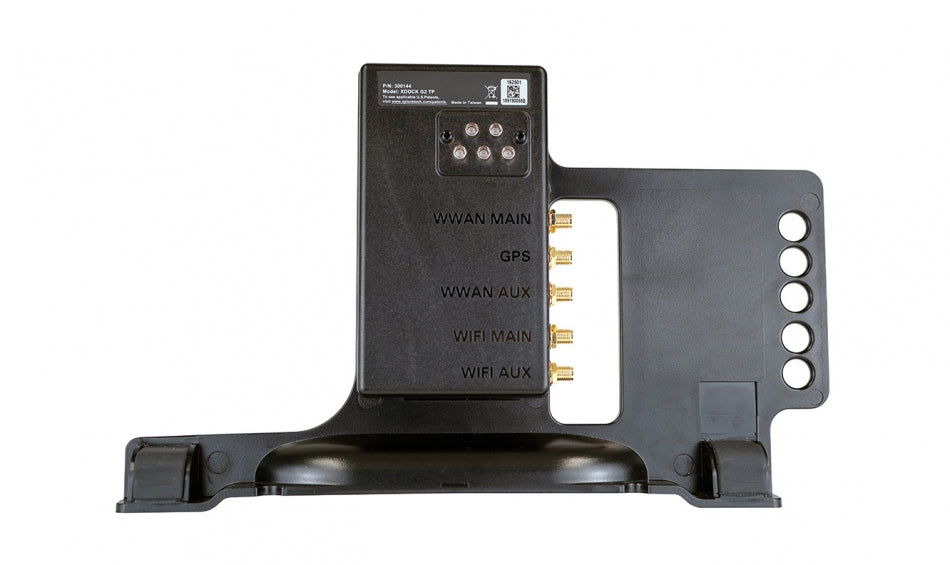

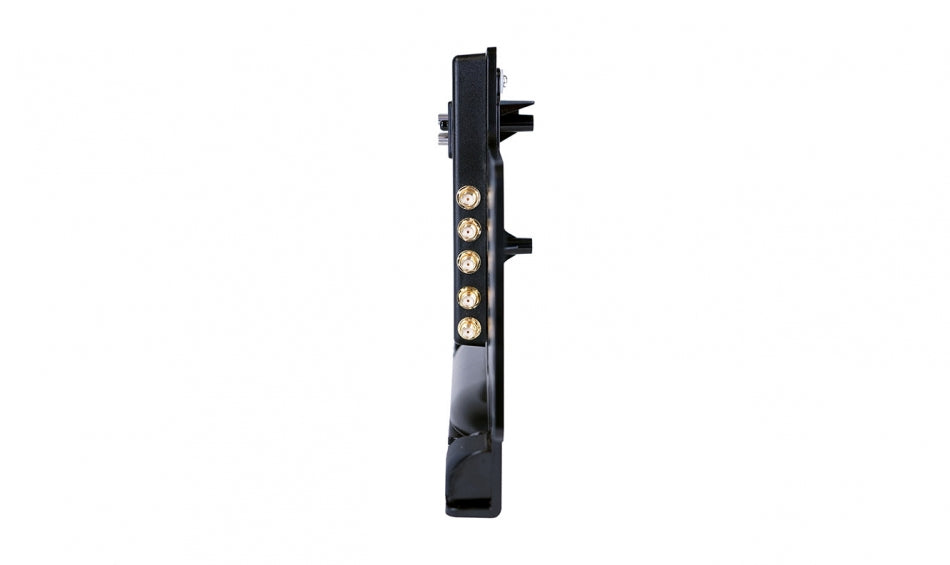

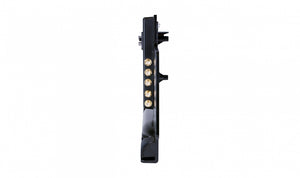

This Zebra L10 vehicle dock/cradle RF module can be attached to the L10 vehicle tablet cradle or the vehicle tablet dock to add antenna pass-through. The RF module has 5 RF pass-through connections.

ANTENNA PASS-THROUGH

  • SMA - (WWAN Main, GPS, WWAN Aux, WIFI Main, WIFI Aux)

PORT REPLICATOR

  • None

FEATURES

  • This RF module is compatible with Zebra L10 vehicle tablet docking stations (7160-1321-00 and 7160-1453-00), L10 vehicle cradle (7110-1292), and the L10 Docking Station Module (7160-1321-01)
  • This RF module is compatible with the Zebra L10 xSlate slate tablet, and xPad hard-handle tablet
  • RF connections include: WWAN Main, GPS, WWAN Aux, WIFI Main, and WIFI Aux connections - SMA
  • Width: 10.75 in / 27.3 cm
  • Height: 6.63 in / 16.8 cm
  • Depth: 1 in / 2.5 cm

WARRANTY

  • 3-Year Limited Warranty
