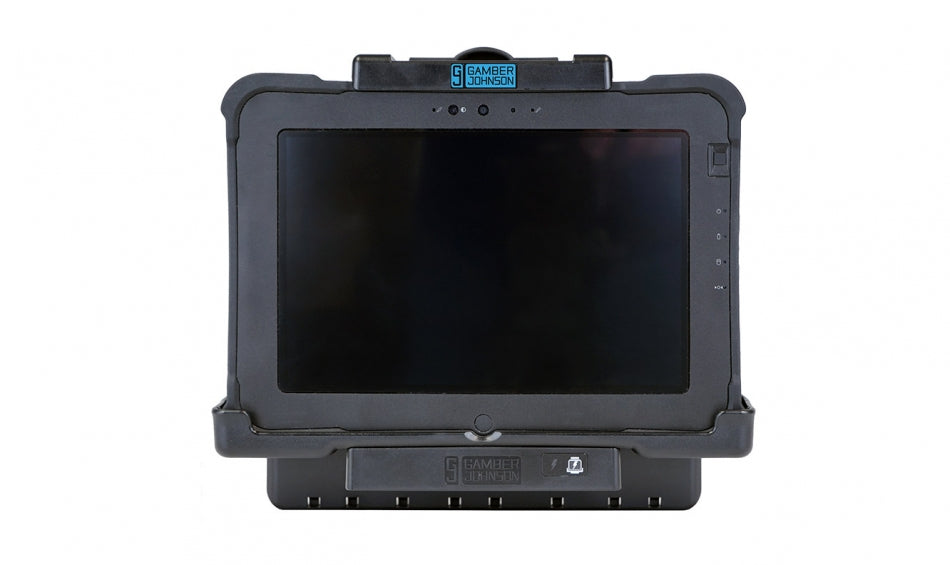

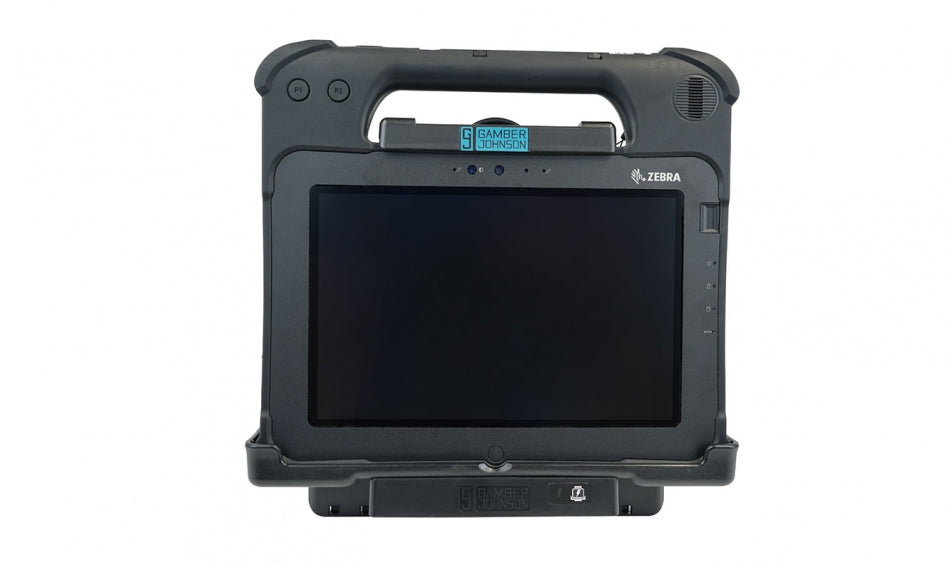

Zebra L10 Windows Tablet Vehicle Docking Station (5x RF-SMA)
This Zebra tablet vehicle docking station for the Zebra L10 xPad or xSlate tablet provides full port replication with powered RS232, 5X RF pass-through, and a keyed lock for security.

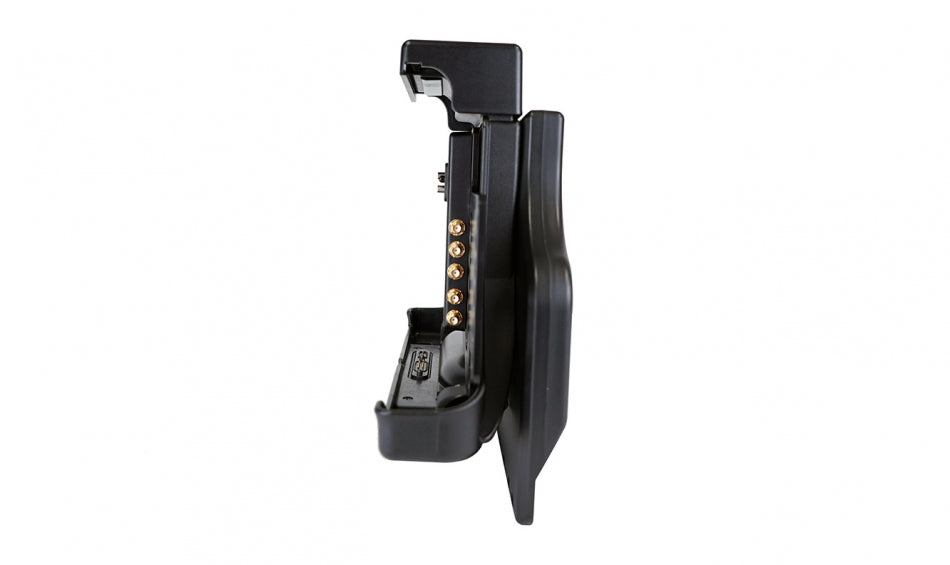

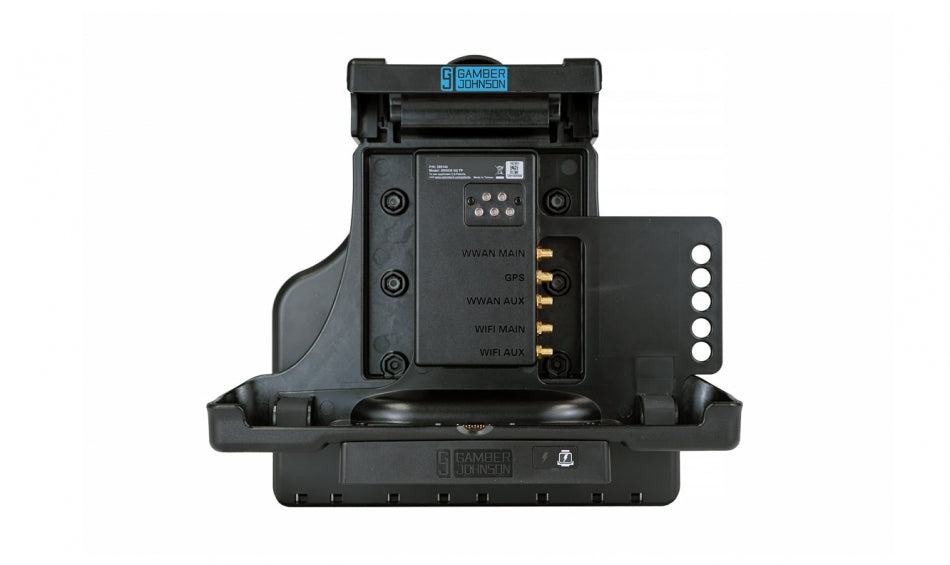

ANTENNA PASS-THROUGH
- SMA - (WWAN Main, GPS, WWAN Aux, WIFI Main, WIFI Aux)

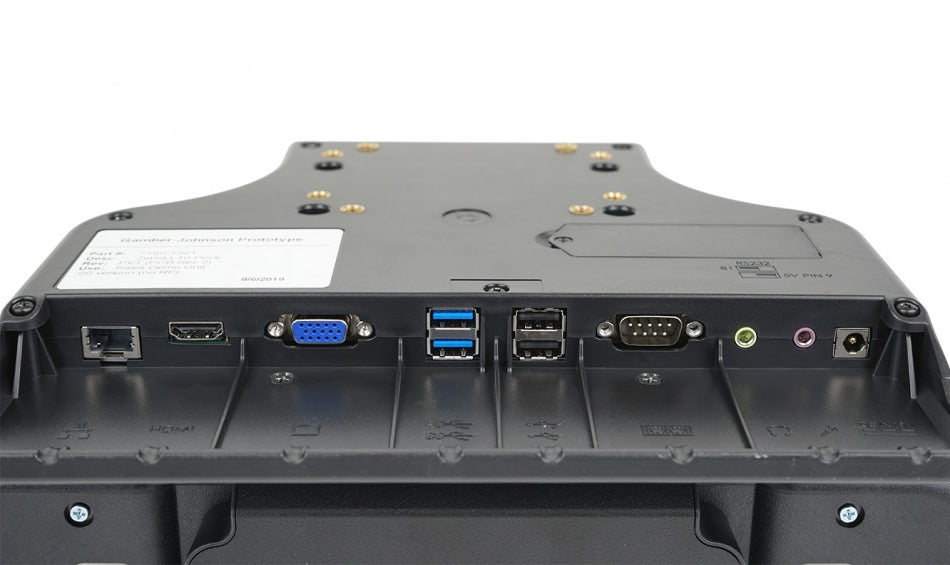

PORT REPLICATOR
- USB 3.0 (2) - 9 pin (900mA)
- USB 2.0 (2) - 4 pin (500 mA)
- USB 2.0 (1) - 4 pin (500mA) behind internal access door
- RS232 Serial (1) - Power on pin 9 (825mA)
- HDMI (1) - 19 pin
- VGA (1) - D-sub 9 pin
- Ethernet (1) - RJ45 (322 mb/s)
- Microphone
- Headphones / Speakers
- Power Input 19Vdc
FEATURES
- Compatible with the Zebra L10 xPad and xSlate tablets
- Docking Station design accommodates the L10 Extended battery, Smart Card/CAC Reader module, True Serial(RS232) module, hard handle, soft handle, and shoulder strap
- Sealed docking connector to protect against moisture
- RS232 on power pin 9 (825mA)
- LED indicator lights show when "tablet is docked" and "dock is powered"
- Access door to internal USB 2.0 port provides additional security
- Floating docking connector for reliable docking activation
- Bottom-facing I/O ports; integrated cable restraint/cable management system
- Forward facing docking latch/release for easy one handed operation
- Insert bottom of computer into docking station, push top of computer in and pull latch forward until latch engages
- To remove, lift latch to disengage and pull computer out of docking station
- Keyed alike lock for security and theft deterrence

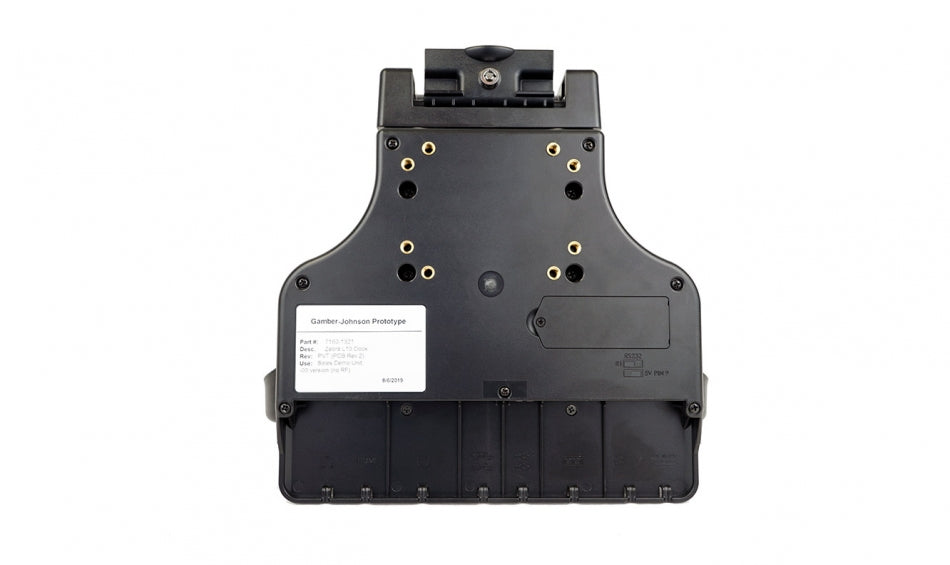

- VESA 75mm and 50 x 100mm mounting patterns
- Rounded edges to enhance personal safety
- Composite/aluminum design for reduced weight and durability
- RF pass-through SMA - (WWAN Main, GPS, WWAN Aux, WIFI Main, WIFI Aux)
- Weight: 11.81 in /29.99 cm
- Heights: 10.63 in / 27.0 cm
- Depth: 3.94 in / 10.0 cm
POWER SUPPLY
- Power Supply is NOT included, utilize one of the following:
- LIND 12-16V Automotive Power Adapter with Bare Wire Lead (7300-0484)
- LIND 12-16V Automotive Power Adapter with Cigarette Lighter Connection (7300-0345)
- LIND 12-32V Automotive Power Adapter with Bare Wire Lead (7300-0344)
- LIND 12-32V Isolated Power Adapter with Bare Wire Lead (7300-0457)
- LIND 72-110V Isolated Material Handling Power Adapter (7300-0346)
- LIND 20-60V Isolated Material Handling Power Adapter (7300-0458)
WARRANTY
- 3-Year Limited Warranty
