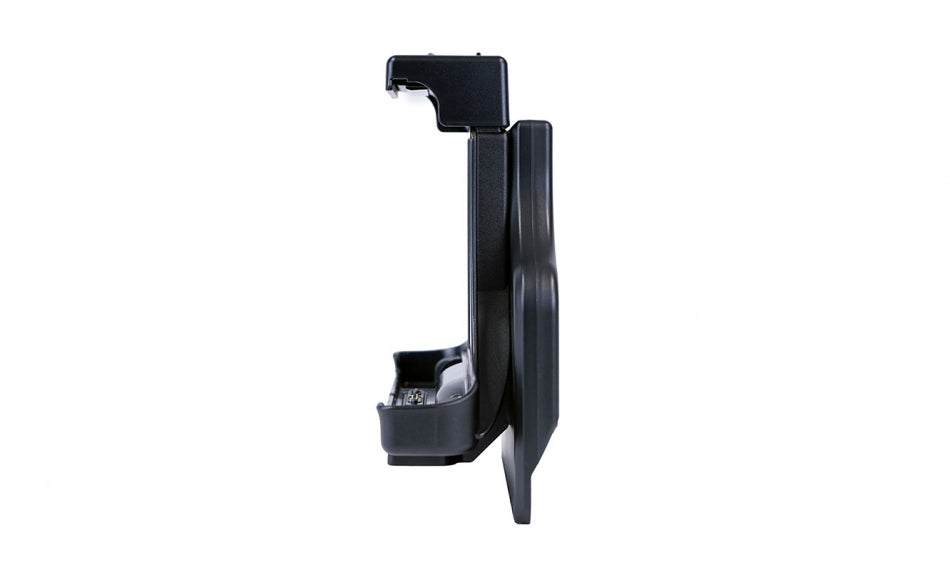

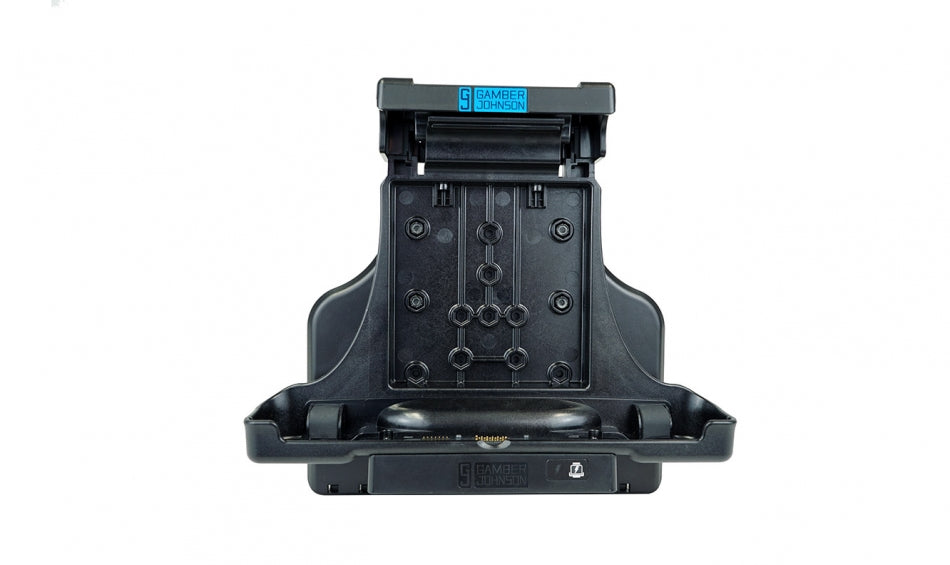

Zebra L10 Windows Tablet Vehicle Docking Station (NO RF) with LIND 20-60V Material Handling Isolated Power Adapter
This Zebra tablet vehicle docking station for the Zebra Windows L10 xPad or xSlate tablet provides full port replication with powered RS232, and a keyed lock for security. Connect the docking station to the LIND power adapter included in this kit.
ANTENNA PASS-THROUGH
- None

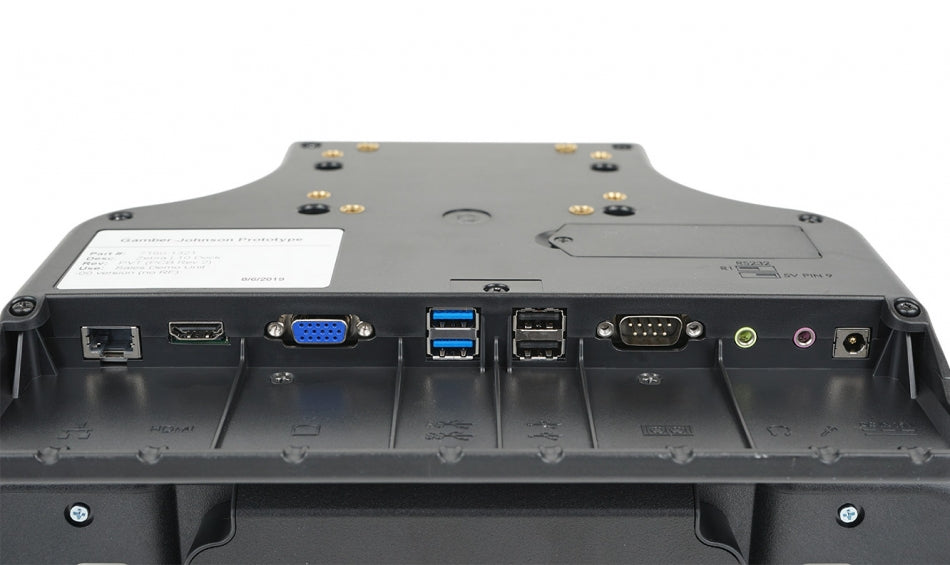

PORT REPLICATOR
- USB 3.0 (2) - 9 pin (900mA)
- USB 2.0 (2) - 4 pin (500 mA) USB 2.0 (1) - 4 pin (500mA) behind internal access door
- RS232 Serial (1) - Power on pin 9 (825mA)
- HDMI (1) - 19 pin
- VGA (1) - D-sub 9 pin
- Ethernet (1) - RJ45 (322 mb/s)
- Microphone
- Headphones / Speakers
- Power Input 19Vdc
FEATURES

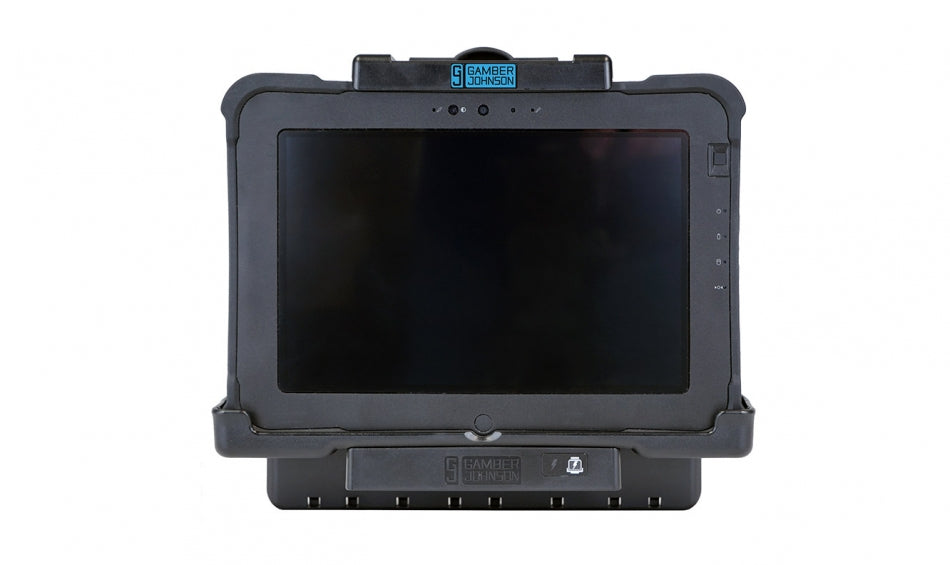

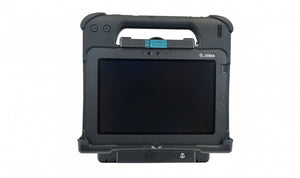

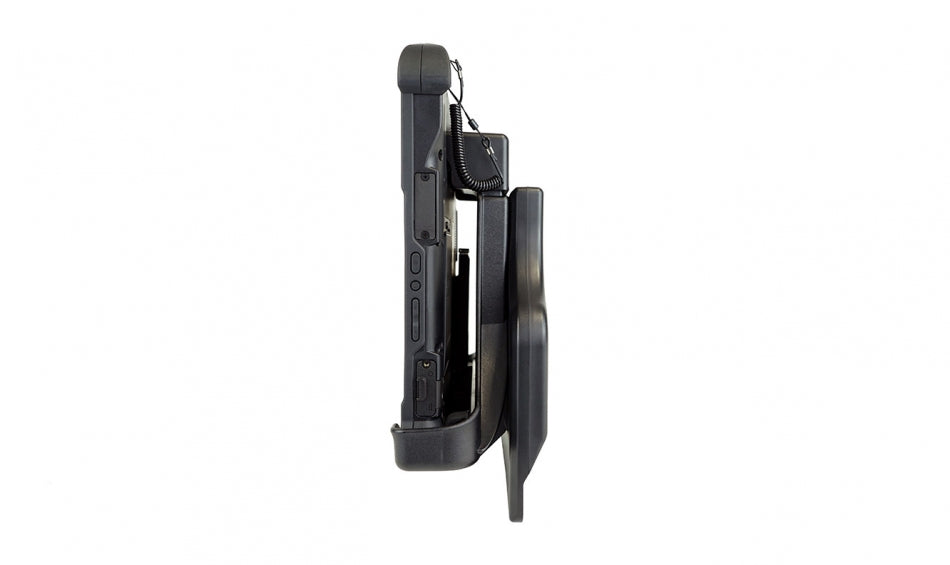

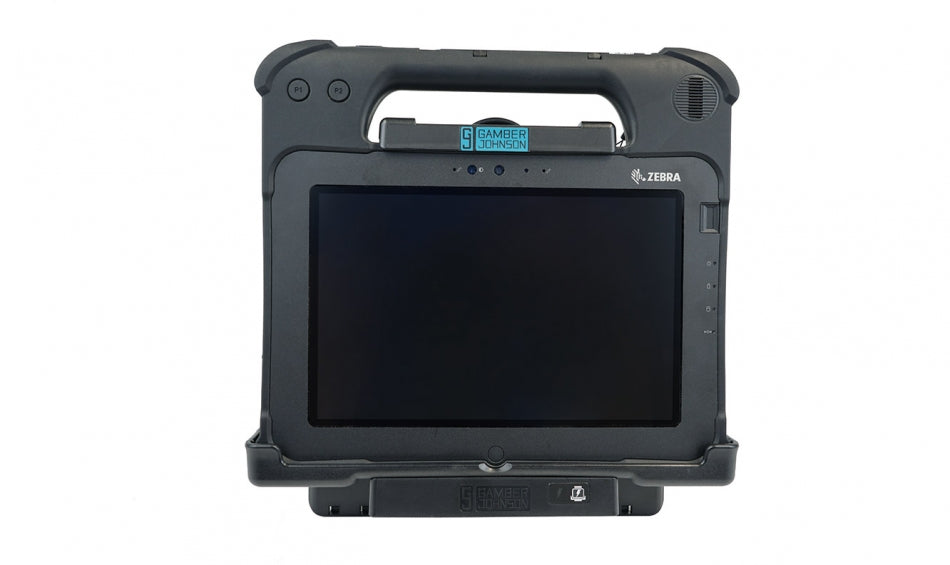

- Compatible with the Zebra Windows L10 xPad and xSlate tablets

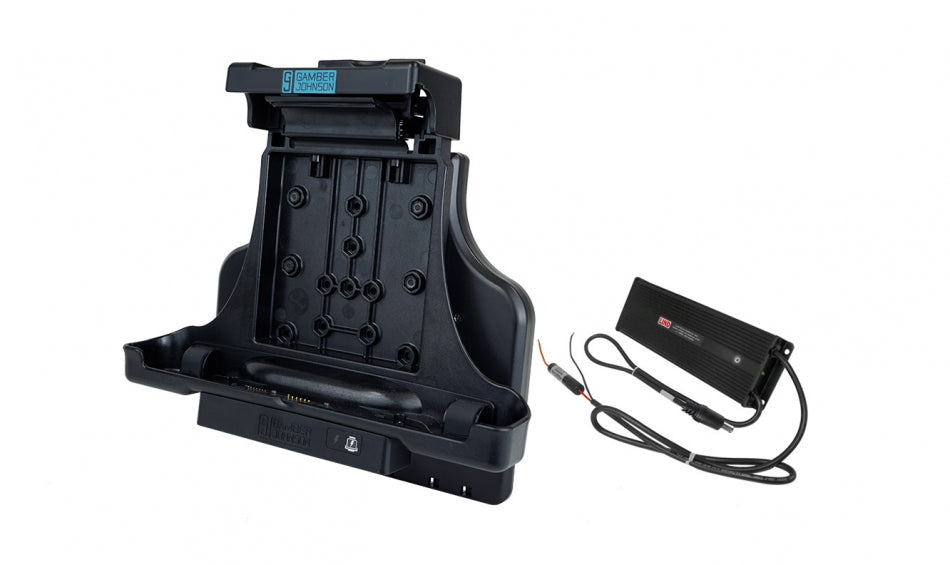

- Kit includes ZEBRA L10 Tablet vehicle docking station NO RF (7160-1321-00) and Lind 20-60V Isolated Power Adapter (7300-0458)
- Docking Station design accommodates the L10 Smart Card/CAC Reader module, True Serial (RS232) module, Hard handle, Soft handle, and Shoulder Strap
- Sealed docking connector to protect against moisture
- RS232 on power pin 9 (825mA)
- LED indicator lights show when "tablet is docked" and "dock is powered"
- Access door to internal USB 2.0 port provides additional security
- Floating docking connector for reliable docking activation
- Bottom-facing I/O ports; integrated cable restraint/cable management system
- Forward facing docking latch/release for easy one handed operation
- Insert bottom of computer into docking station, push top of computer in and pull latch forward until latch engages
- To remove, lift latch to disengage and pull computer out of docking station
- Keyed alike lock for security and theft deterrence

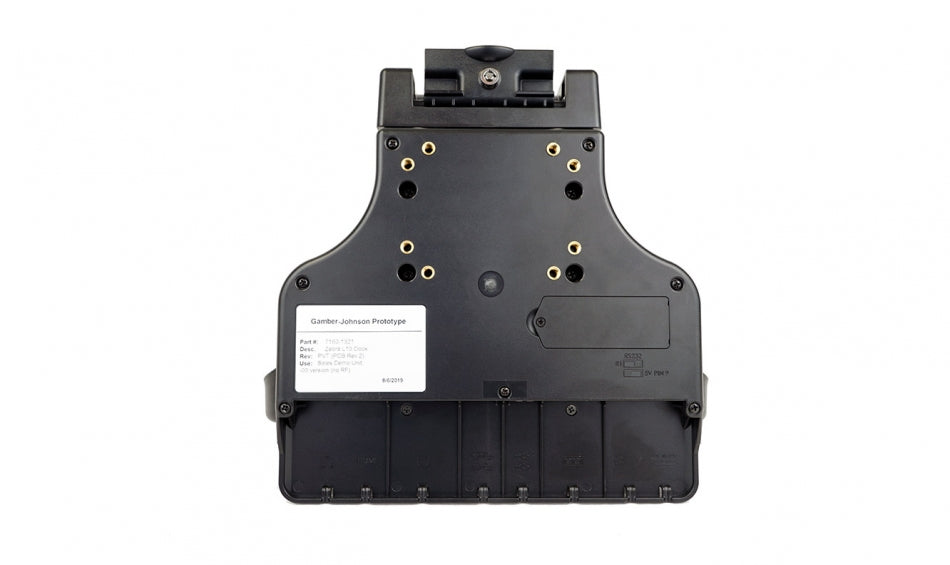

- VESA 75mm and 50 x 100mm mounting patterns
- Rounded edges to enhance personal safety
- Composite/aluminum design for reduced weight and durability
- Width: 11.81 in / 29.99 cm
- Height: 10.63 in / 27.0 cm
- Depth: 3.94 in / 10.0 cm
- Weight - Docking Station: 3.75 lbs / 1.70 kg | Power Adapter: 1.56 lbs / 0.52 kg
WARRANTY
- 3-Year Limited Warranty
