Works with any Gamber-Johnson clevis

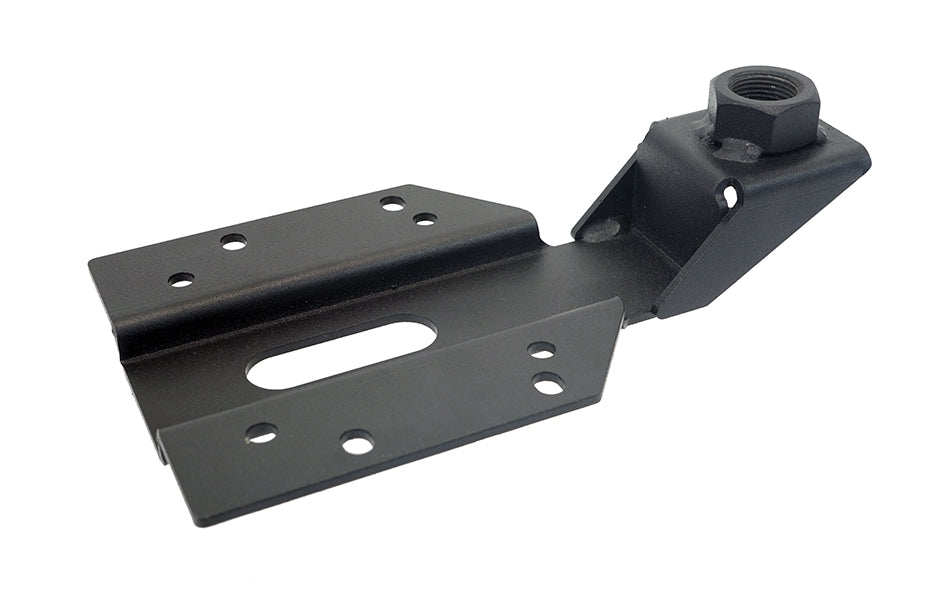

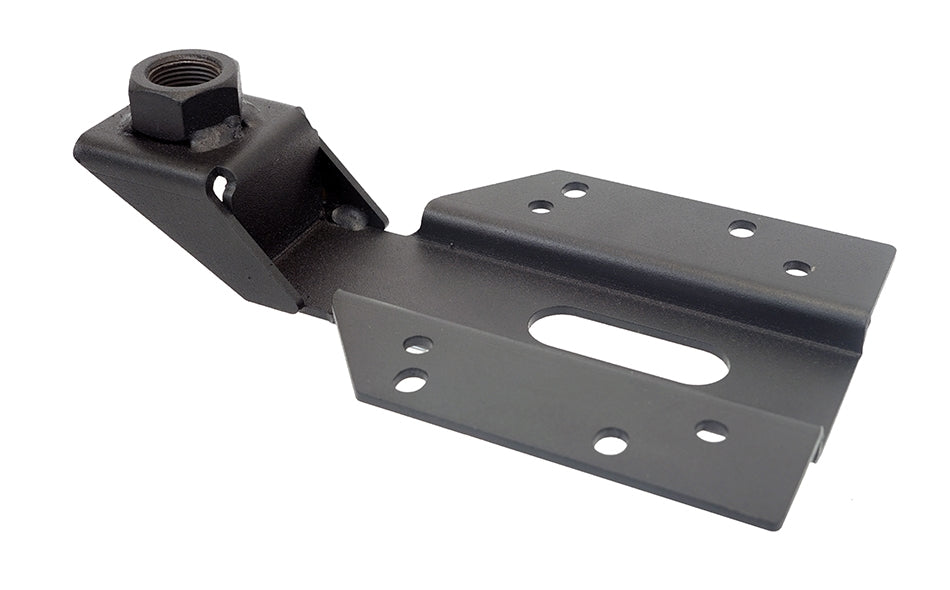

Zirkona to GJ Clevis Adapter Plate
Convert a mongoose, once holding your rugged laptop, to a tablet and keyboard with the help of the Zirkona to GJ clevis adapter plate.
FEATURES
- Effortlessly adapt to your existing mongoose when convert to a tablet and keyboard
- Mounts to the underside of the clevis on any Mongoose using either the Gamber-Johnson Hole Pattern (2"X4") or the VESA 75 mm hole pattern
- Welded Zirkona threads (M20) to mount customizable Zirkona parts for your tablet
- Use the clevis on the mongoose to find your operating angle
- Clevis acts as a swivel to the tablet and keyboard solution for a close and compact design
- Height: 2.13 in / 5.41 cm
- Width: 4.75 in / 12.07 cm
- Depth: 8.38 in / 21.29 cm
COMPATIBILITY
RECOMMENDED SOLUTIONS
-
Solution 1:
- Mongoose® - 9" Locking Slide Arm (7160-0220)
- Zirkona to GJ Clevis Adapter Plate (7110-1343)
- Quick Release Keyboard Cradle for the Rugged Lite Keyboard (7160-1470-00)
- Rugged Lite Keyboard (7160-1449-00)
- 6" Medium 2-Down Joiner (7110-1304)
- Zirkona 75mm VESA Device Plate (14139)
- NotePad™ Touch Universal Tablet Cradle (7160-1299-00)
-
Solution 2:
- Mongoose® - 9” Locking Slide Arm with Short Clevis (7160-0928)
- Zirkona to GJ Clevis Adapter Plate (7110-1343)
- Quick Release Keyboard Cradle for the Rugged Lite Keyboard (7160-1470-00)
- Rugged Lite Keyboard (7160-1449-00)
- Zirkona Thread Adapter only (14145)
- Zirkona 6" (150mm) Extension (14143)
- Zirkona Large 2-Down Joiner with Brake (7110-1260)
- Zirkona 75mm VESA Device Plate (14139)
- NotePad™ Touch Universal Tablet Cradle (7160-1299-00)
-
Solution 3:
- Mongoose® - 9" Locking Slide Arm (7160-0220)
- Zirkona to GJ Clevis Adapter Plate (7110-1343)
- Quick Release Keyboard Cradle for the Rugged Lite Keyboard (7160-1470-00)
- Rugged Lite Keyboard (7160-1449-00)
- Zirkona Thread Adapter only (14145)
- Zirkona 4" (100mm) Extension (14142)
- Zirkona Medium 2-Down Joiner with Brake (7110-1259)
- Zirkona Round Plate - Device or Base Plate (14144)
- Samsung Galaxy Tab Active2 Dual USB Docking Station with Cigarette Lighter Connector (7160-1368-20)
NOTE
- Recommend use of LOCTITE® 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510)
WARRANTY
- 1-Year Limited Warranty
